Product Model
dpa-40-10-crvzs2
Selling Points

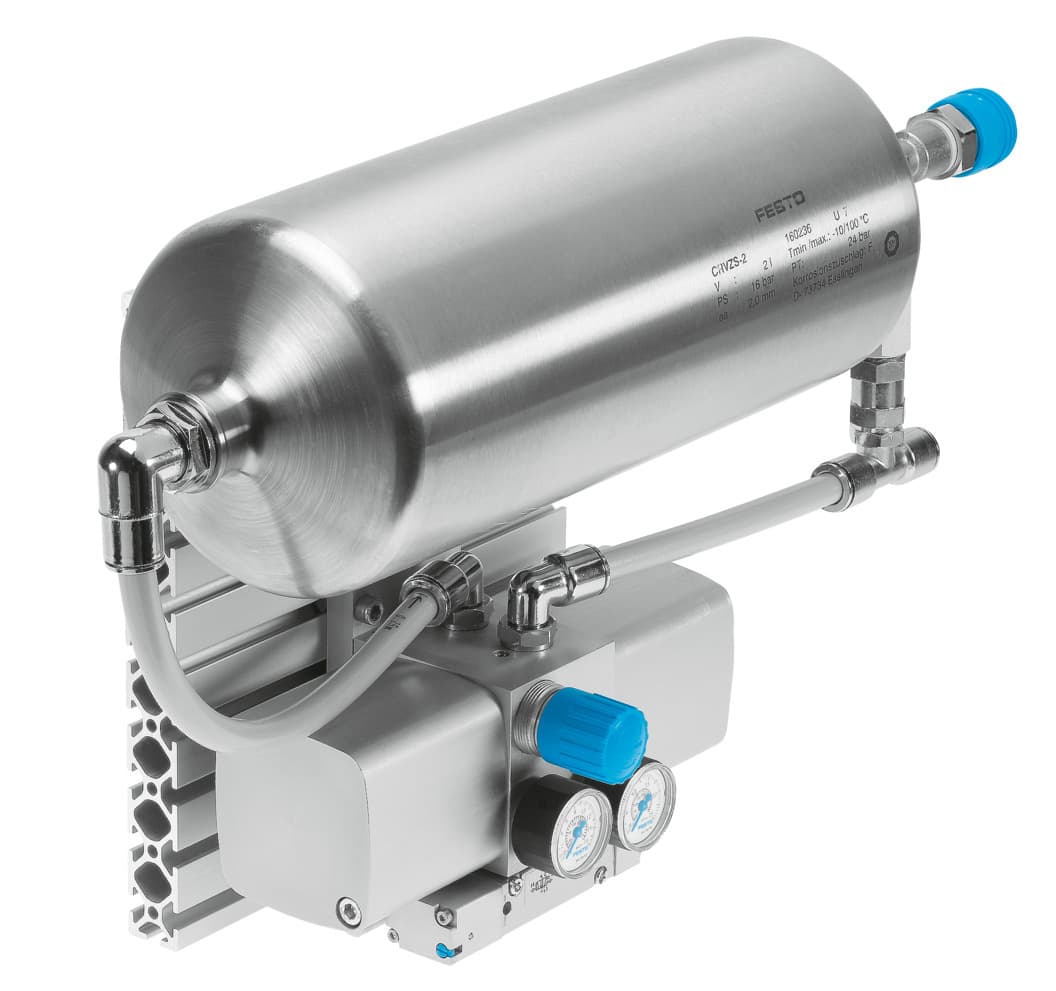

- 1The Festo DPA-40-10-CRVZS2 is a twin-piston pressure booster designed to enhance compressed air management in industrial settings. It features a 40 mm piston diameter and a 2-liter air reservoir, ensuring efficient operation and precise pressure regulation.
- 2This pressure booster is equipped with a high-alloy stainless steel air reservoir, providing excellent corrosion resistance and durability. It operates within a temperature range of 5°C to 60°C, making it suitable for various industrial environments.
- 3The DPA-40-10-CRVZS2 offers flexible mounting options, allowing for easy integration into different pneumatic systems. It includes a pressure gauge and a check valve for continuous filling of the air reservoir, ensuring consistent performance.
- 4With an output pressure range of 4.5 to 10 bar and an operating pressure range of 2.5 to 8 bar, this pressure booster is versatile and can be used in a variety of applications requiring different pressure levels.
- 5The Festo DPA-40-10-CRVZS2 is designed to operate with compressed air to ISO 8573-1:2010 [7:3:4] standards, ensuring high-quality air filtration. It is also RoHS-compliant and suitable for applications where lubricated operation is not possible, making it a reliable choice for many industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Piston diameter | 40 mm | Volume | 2 l |
Mounting position | Any | Structural design | Twin-piston pressure intensifier with air reservoir with pressure gauge with non-return valve |
Symbol | 00991432 | Pressure gauge | with pressure gauge |
Output pressure 2 | 65.25psi 145psi | Outlet pressure 2 | 4.5bar 10bar |
Operating pressure | 36.25psi 116psi | Pressure regulation range MPa | 0.45MPa 1MPa |
Pressure regulation range | 4.5bar 10bar | Pressure regulation range psi | 65.25psi 145psi |
Inlet pressure 1 | 2bar 8bar | Inlet pressure 1 MPa | 0.2MPa 0.8MPa |
Inlet pressure 1 psi | 29psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 4400g |
Type of mounting | With slot nuts | Pneumatic connection 1 | QS-10 |
Pneumatic connection 2 | KD4 | Pneumatic connection 3 | Pneumatic muffler |
Note on materials | RoHS-compliant | Air reservoir material | High-alloy stainless steel |
Manufacturer ID | 552928 |
Specifications may be subject to change without notice
