Product Model

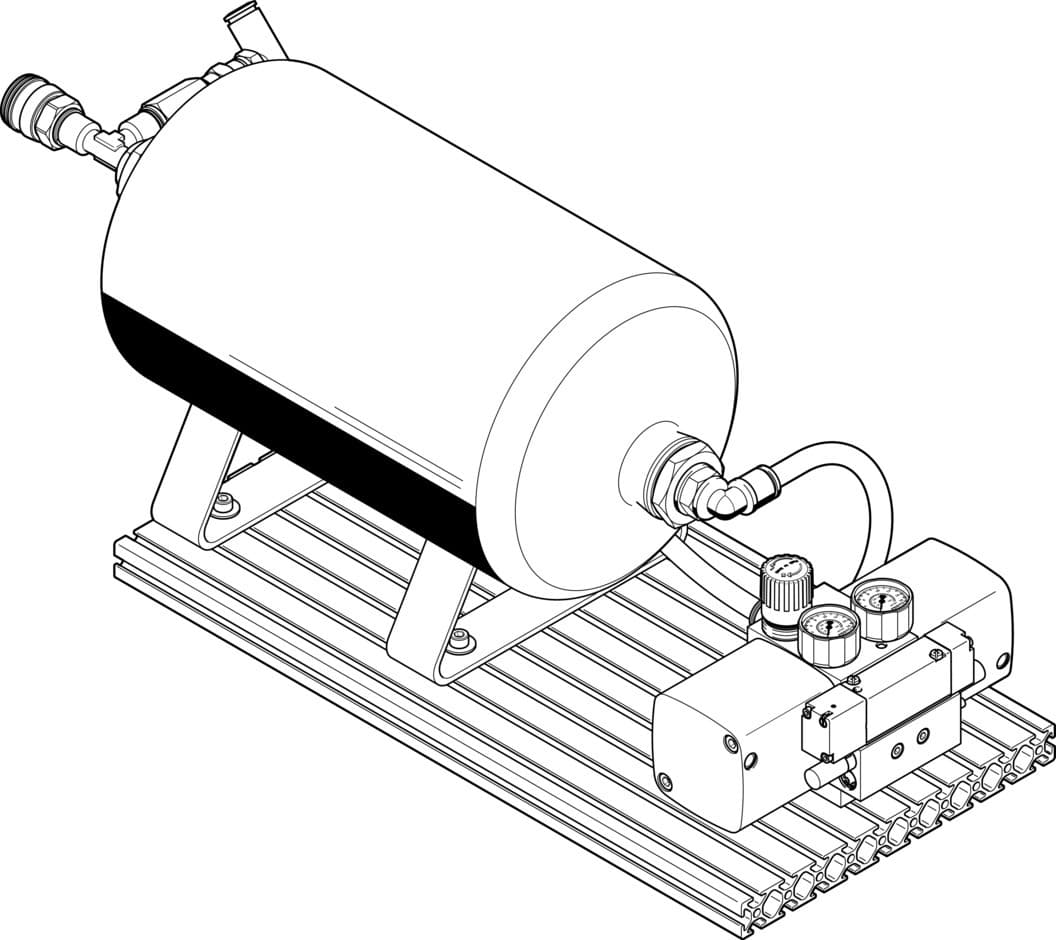

dpa-40-16-crvzs5
Selling Points
- 1The DPA-40-16-CRVZS5 features a twin-piston pressure intensifier, ensuring efficient compression and high output pressures up to 16 bar.
- 2Built with high-alloy stainless steel for the air reservoir, this pressure booster offers excellent corrosion resistance and durability.
- 3With a pressure regulation range of 4.5 to 16 bar, this unit can handle various industrial applications requiring precise pressure control.
- 4Equipped with a condensate drain and a pressure gauge, the DPA-40-16-CRVZS5 simplifies installation and maintenance processes.
- 5Meets CE marking and UKCA marking standards, ensuring compliance with EU and UK pressure equipment directives for safe operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Piston diameter | 40 mm | Volume | 5 l |
Mounting position | Condensate drain downwards | Structural design | Twin-piston pressure intensifier with air reservoir with pressure gauge with non-return valve |
Symbol | 00991432 | Pressure gauge | with pressure gauge |
Output pressure 2 | 65.25psi 232psi | Outlet pressure 2 | 4.5bar 16bar |
Operating pressure | 36.25psi 116psi | Pressure regulation range MPa | 0.45MPa 1.6MPa |
Pressure regulation range | 4.5bar 16bar | Pressure regulation range psi | 65.25psi 232psi |
Inlet pressure 1 | 2bar 8bar | Inlet pressure 1 MPa | 0.2MPa 0.8MPa |
Inlet pressure 1 psi | 29psi 116psi | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
Ambient temperature | 5°C 60°C | Max. tightening torque for condensate drain | 27Nm |
Product weight | 7300g | Type of mounting | With slot nuts |
Pneumatic connection 1 | QS-10 | Pneumatic connection 2 | KD4 |
Pneumatic connection 3 | Pneumatic muffler | Note on materials | RoHS-compliant |
Air reservoir material | High-alloy stainless steel | Manufacturer ID | 552931 |
Specifications may be subject to change without notice
