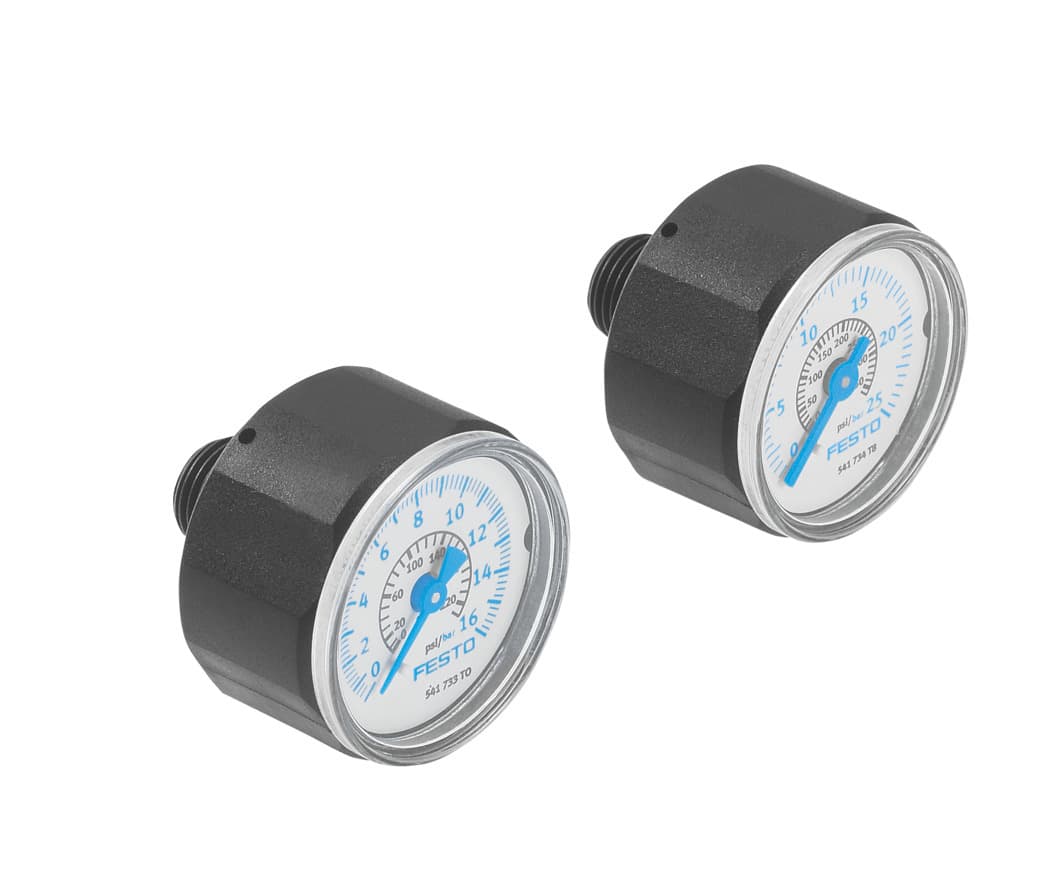

Product Model
dpa-40-16-ma-set
Selling Points
- 1Accurate Pressure Measurement: The DPA-40-16-MA-SET pressure gauge kit ensures precise measurement of compressed air pressure, conforming to the EN 837-1 standard.
- 2Bourdon Tube Design: Equipped with a Bourdon tube pressure gauge, this kit offers reliable and accurate readings, making it a trusted choice for air pressure monitoring.
- 3Versatile Mounting Options: The kit can be mounted via male connections, providing flexibility in installation and ensuring easy integration into various pneumatic systems.
- 4High-Quality Construction: Built with durable materials, the DPA-40-16-MA-SET pressure gauge kit offers long-lasting performance and minimal maintenance requirements.
- 5Comprehensive Solution: This kit is part of a comprehensive solution for compressed air preparation, including accessories like silencers and quick couplings, making it an all-in-one solution for pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991463 | Conforms to standard | EN 837-1 |
Pressure gauge nominal size | 27 | Structural design | Bourdon tube pressure gauge |
Type of mounting | With external thread | Operating pressure | 16bar |
Measurement accuracy class | 4 | Degree of protection | IP43 |
Ambient temperature | 5°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Mounting position | Any |
Pneumatic connection | R1/8 | Product weight | 16g |
Manufacturer ID | 540782 |
Specifications may be subject to change without notice
