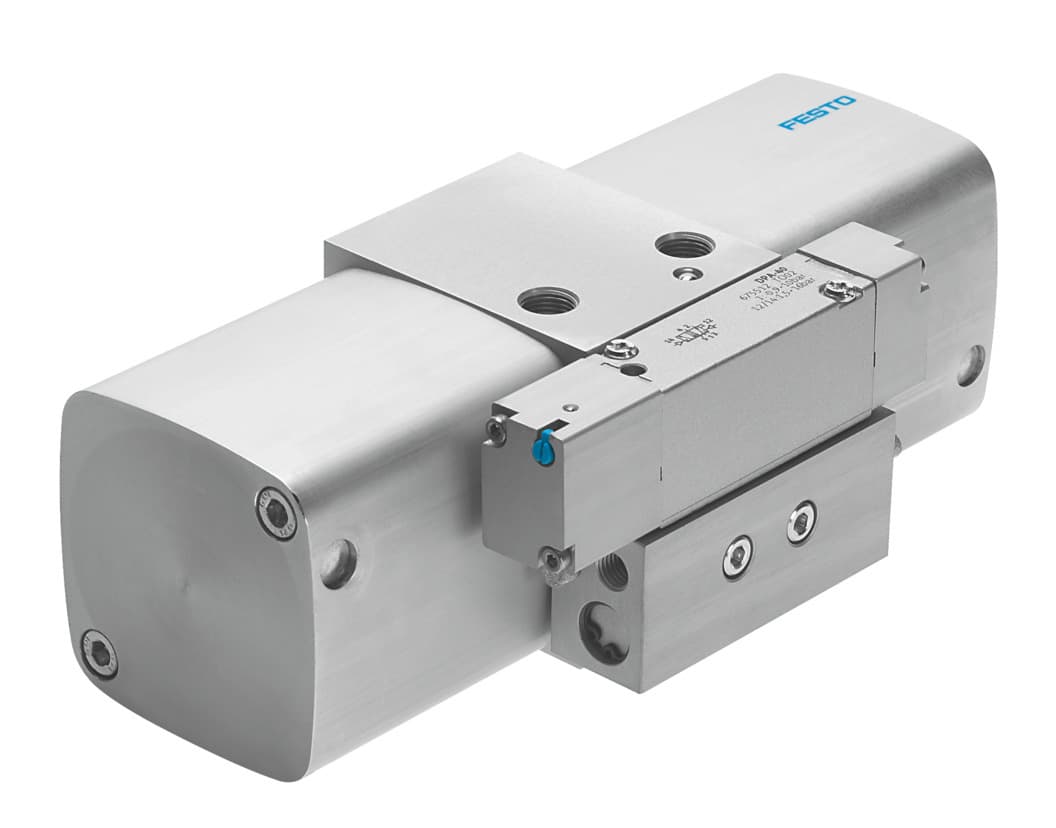

Festo DPA-40-D Pressure Booster | High-Pressure Solutions

Selling Points

1The Festo DPA-40-D pressure booster is designed to generate output pressures ranging from 5 to 16 bar, making it ideal for applications requiring high-pressure systems.
2With a piston diameter of 40 mm and an optional mounting position, this pressure booster offers flexibility in installation and compact construction.
3Equipped with integrated non-return valves, the DPA-40-D ensures efficient pressure build-up on the secondary side when pressurized with compressed air.
4The product features a corrosion resistance class of CRC 2, indicating moderate corrosion stress, making it suitable for various industrial environments.
5The pressure booster is prepared for G1/8 pressure gauges and can be connected via female threads (G1/4) and M7, facilitating easy integration into pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Piston diameter	40 mm	Mounting position	Any
Structural design	Twin-piston pressure intensifier	Symbol	00992008
Pressure gauge	G1/8 prepared	Output pressure 2	72.5psi 232psi
Outlet pressure 2	5bar 16bar	Operating pressure	29psi 116psi
Pressure regulation range MPa	0.4MPa 1.6MPa	Pressure regulation range	4bar 16bar
Pressure regulation range psi	58psi 232psi	Inlet pressure 1	2.5bar 8bar
Inlet pressure 1 MPa	0.25MPa 0.8MPa	Inlet pressure 1 psi	36.25psi 116psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:3:4]	Information on operating and pilot media	Operation with oil lubrication not possible
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	5°C 60°C	Ambient temperature	5°C 60°C
Product weight	1500g	Type of mounting	With internal thread
Pneumatic connection 1	G1/4	Pneumatic connection 2	G?
Pneumatic connection 3	M7	Note on materials	RoHS-compliant
Manufacturer ID	549396

Specifications may be subject to change without notice
