Product Model
dpa-63-16-ma-set
Selling Points

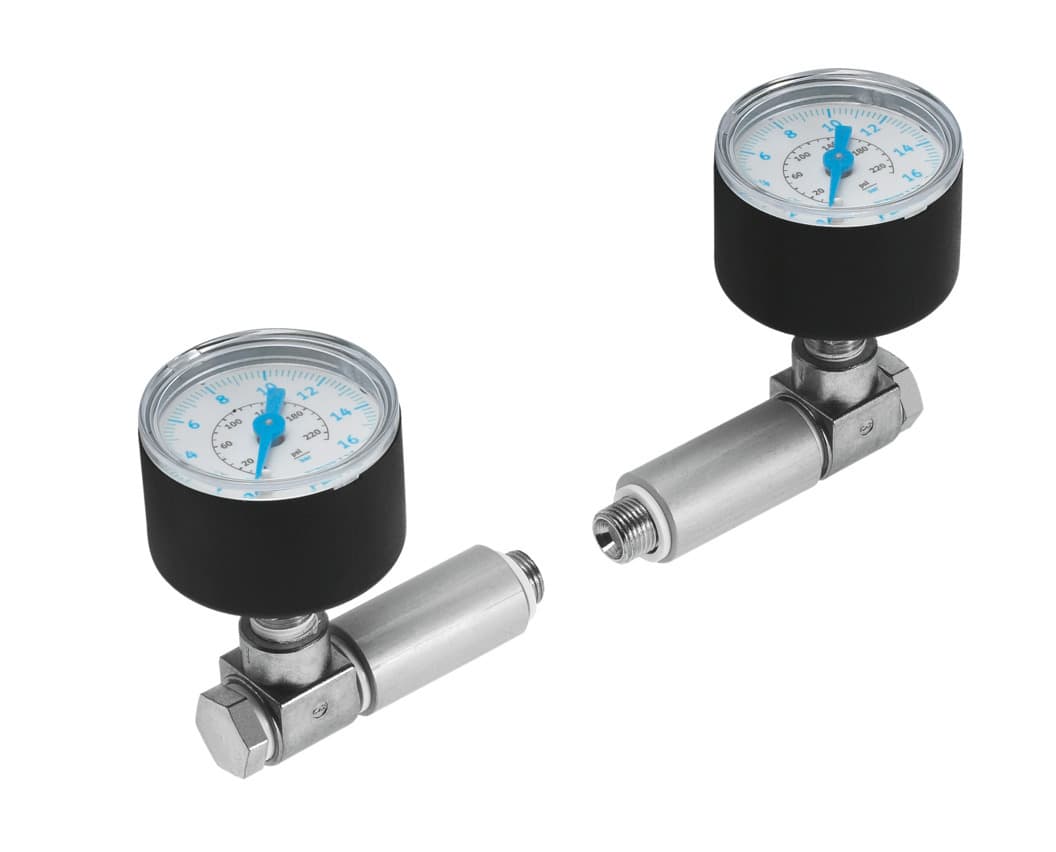

- 1The Festo DPA-63-16-MA-SET pressure gauge kit is designed to provide high accuracy in air pressure monitoring, making it a crucial tool for industrial applications.
- 2This kit includes two identical pressure gauges with a sufficient dial, ensuring that both input and output pressures are easily readable.
- 3The pressure gauges in the DPA-63-16-MA-SET are designed with a Bourdon tube mechanism, conforming to the standard EN 837-1 for precise measurements.
- 4The kit is suitable for mounting in any position, offering flexibility in installation, and is compatible with various Festo DPA models.
- 5The DPA-63-16-MA-SET pressure gauge kit is part of Festo's comprehensive range of pneumatic components, ensuring compatibility and reliability in your system setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991463 | Conforms to standard | EN 837-1 |
Pressure gauge nominal size | 40 | Structural design | Bourdon tube pressure gauge |
Type of mounting | With external thread | Operating pressure | 16bar |
Measurement accuracy class | 2.5 | Degree of protection | IP43 |
Ambient temperature | 5°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Mounting position | Any |
Pneumatic connection | G1/8 | Product weight | 250g |
Manufacturer ID | 526097 |
Specifications may be subject to change without notice
