Product Model

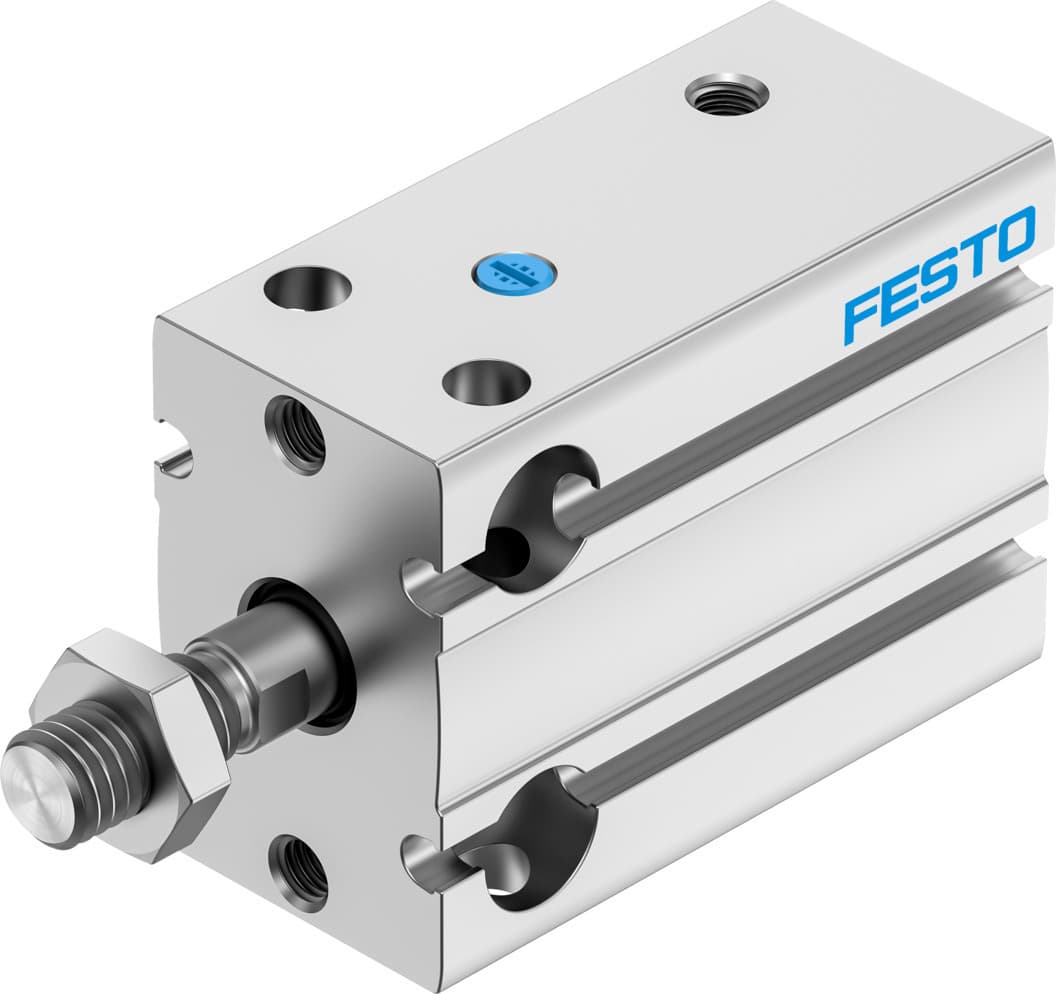

dpdm-20-10-s-pa
Selling Points
- 1The Festo DPDM-20-10-S-PA compact pneumatic cylinder offers precise control and reliable operation, making it ideal for various industrial applications.
- 2With a stroke of 10 mm and a piston diameter of 20 mm, this cylinder is designed to be compact and space-efficient, perfect for applications where space is limited.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear on the components.
- 4The DPDM-20-10-S-PA offers optional mounting positions, allowing for flexible installation in different settings.
- 5This cylinder is compliant with ISO 8573-1:2010 for compressed air quality and meets CRC 2 corrosion resistance class, ensuring it can operate in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991729 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 160N | Theoretical force at 6 bar, advancing | 160N |
Moving mass at 0?mm stroke | 34.5g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 117g | Additional weight per 10?mm stroke | 22g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840808 |
Specifications may be subject to change without notice
