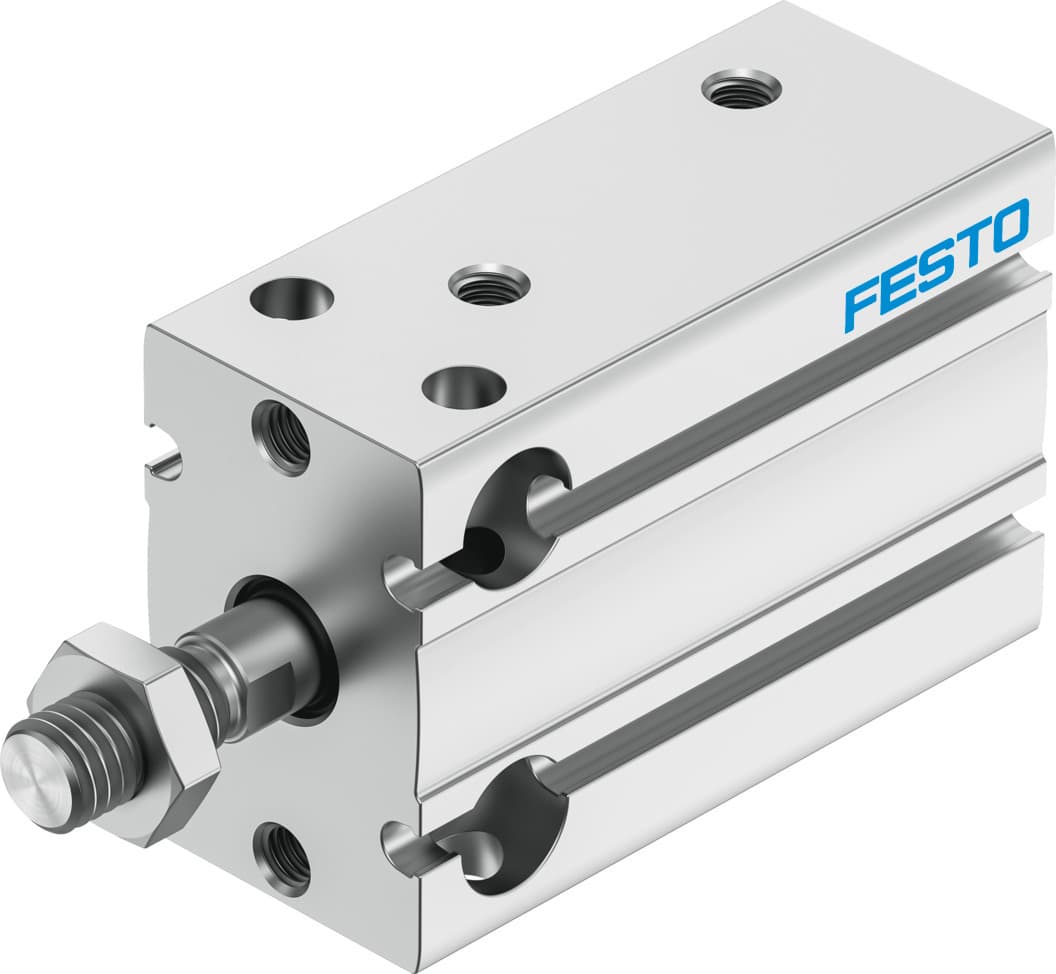

Festo DPDM-20-15-PA Compact Air Cylinder - High-Quality Pneumatic Solutions

Selling Points

1The DPDM-20-15-PA features a compact cylinder design, perfect for space-constrained applications.
2This cylinder operates double-acting, allowing for both extension and retraction with equal force.
3Equipped with flexible cushioning rings at both ends for smooth operation and reduced wear.
4Can be mounted in any position, offering flexibility in installation.
5Designed to work with compressed air according to ISO 8573-1:2010 [7:4:4], ensuring reliable performance in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	20 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991217
Variants	Piston rod at one end	Operating pressure	1bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Theoretical force at 6 bar	188N	Theoretical force at 6 bar, retracting	158N
Theoretical force at 6 bar, advancing	188N	Moving mass at 0?mm stroke	34.5g
Additional moving mass per 10?mm stroke	4g	Basic weight with 0?mm stroke	128g
Additional weight per 10?mm stroke	22g	Type of mounting	Optionally: With through-hole With internal thread
Pneumatic connection	M5	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy stainless steel
Manufacturer ID	4840801

Specifications may be subject to change without notice
