Product Model
dpdm-20-15-s-pa
Selling Points

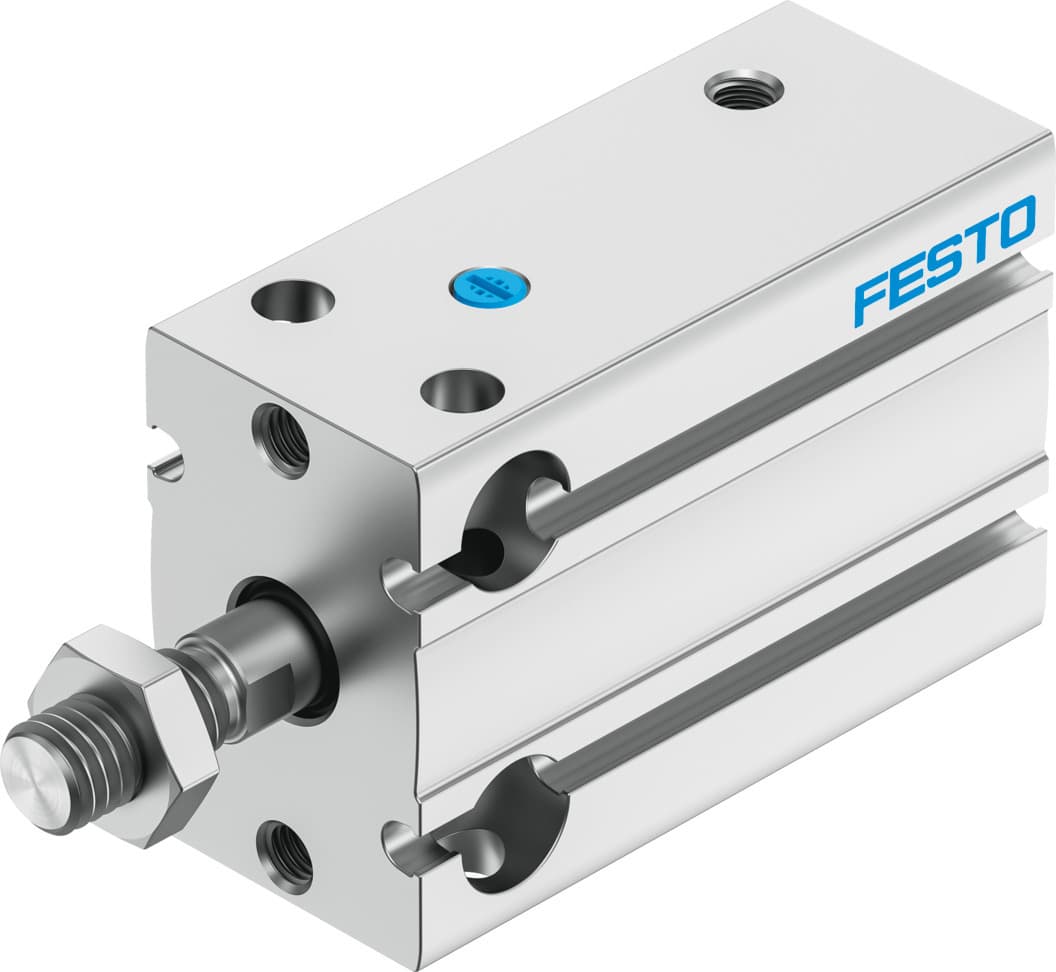

- 1The Festo DPDM-20-15-S-PA compact pneumatic cylinder is engineered for precise and reliable operation, ensuring consistent performance in various industrial applications.
- 2With a length of 52mm and a 15mm stroke, this cylinder is perfect for space-constrained environments, making it ideal for use in robotics, automation, and other precision machinery.
- 3This cylinder operates in single-acting mode with a return spring, providing a straightforward and efficient mechanism for extending applications.
- 4Constructed from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder offers excellent corrosion resistance and durability.
- 5The DPDM-20-15-S-PA cylinder can be mounted via through-hole or female thread, providing flexibility in installation and integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991729 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 160N | Theoretical force at 6 bar, advancing | 160N |
Moving mass at 0?mm stroke | 34.5g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 117g | Additional weight per 10?mm stroke | 22g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840809 |
Specifications may be subject to change without notice
