Product Model
dpdm-20-20-pa
Selling Points

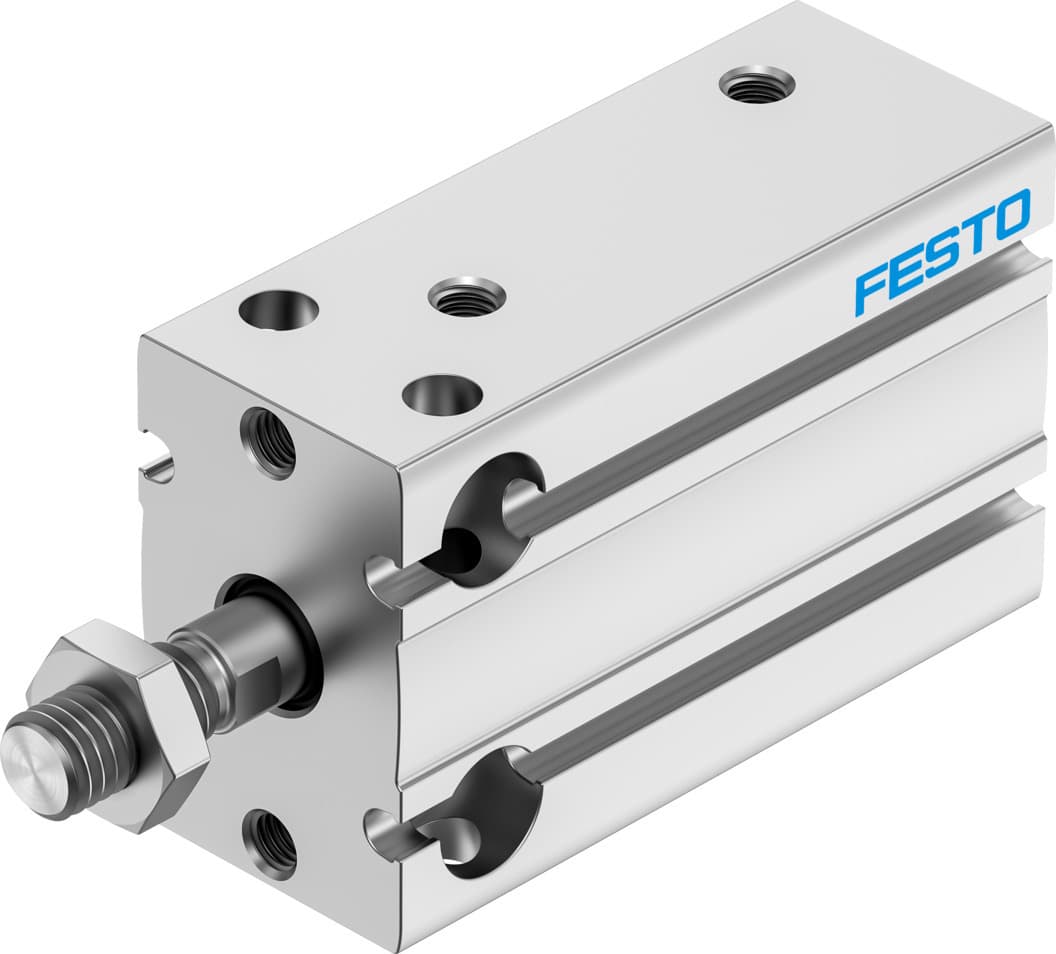

- 1The Festo DPDM-20-20-PA compact cylinder offers a 20mm stroke and a 20mm piston diameter, making it suitable for a wide range of industrial applications.
- 2This double-acting cylinder features elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear.
- 3The DPDM-20-20-PA is designed for optional mounting positions, providing flexibility in installation and integration with various systems.
- 4With a theoretical force of 188N at 0.6 MPa (6 bar), this cylinder delivers reliable performance in both advance and return strokes.
- 5The Festo DPDM-20-20-PA is constructed from high-quality materials, including anodized wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 188N | Theoretical force at 6 bar, retracting | 158N |
Theoretical force at 6 bar, advancing | 188N | Moving mass at 0?mm stroke | 34.5g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 128g |
Additional weight per 10?mm stroke | 22g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4840802 |
Specifications may be subject to change without notice
