Product Model
dpdm-20-5-pa
Selling Points

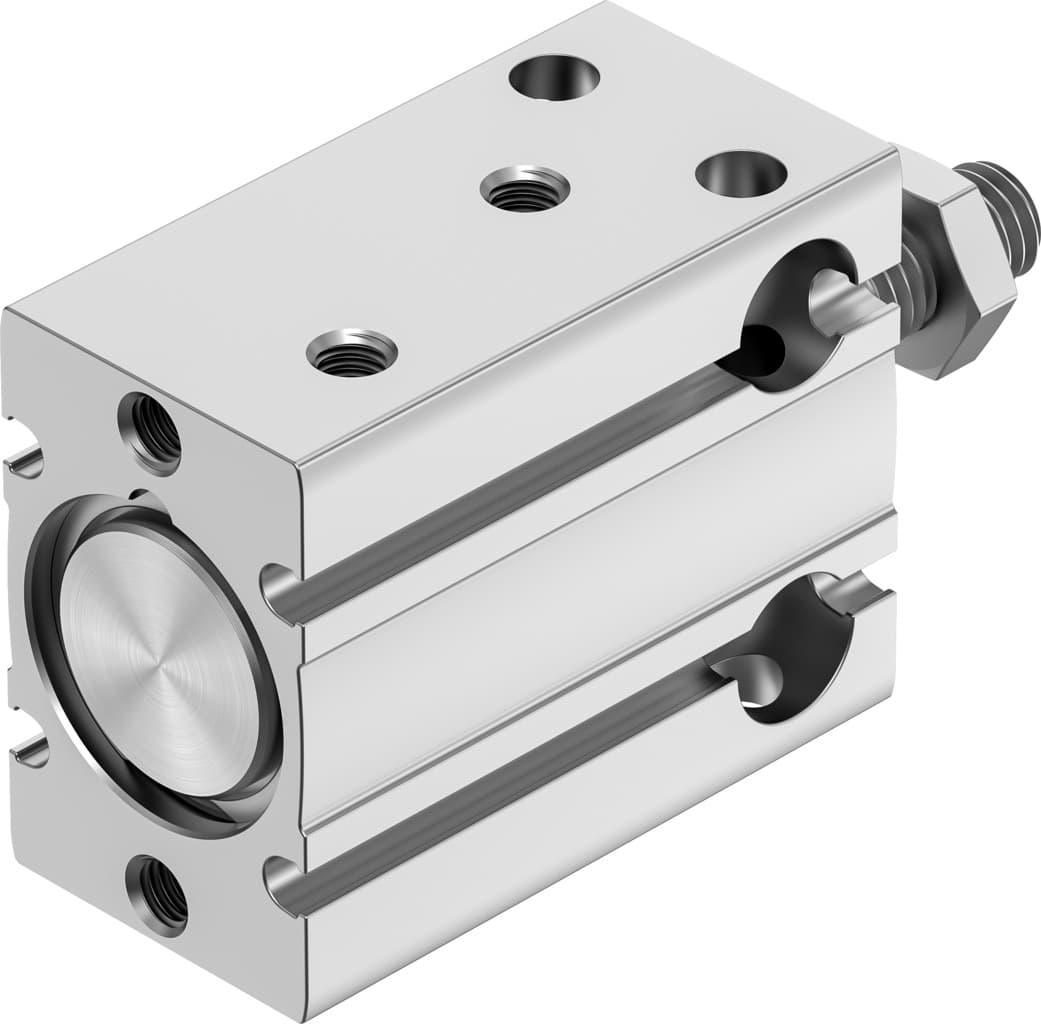

- 1The Festo DPDM-20-5-PA is a compact pneumatic cylinder designed for single-acting pulling actions, featuring a 5 mm stroke and a 20 mm piston diameter.
- 2Equipped with flexible cushioning rings at both ends, this cylinder provides effective shock absorption and ensures smooth operation.
- 3The DPDM-20-5-PA supports a wide range of mounting options and can be used in various assembly positions, making it versatile for different applications.
- 4Operating within a pressure range of 1.5 to 8 bar, this cylinder is suitable for compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring reliable performance in various environments.
- 5The Festo DPDM-20-5-PA is made from high-quality materials, including wrought aluminum alloy for the housing, high-alloyed stainless steel for the piston rod, and TPE-U(PU) seals, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 188N | Theoretical force at 6 bar, retracting | 158N |
Theoretical force at 6 bar, advancing | 188N | Moving mass at 0?mm stroke | 34.5g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 128g |
Additional weight per 10?mm stroke | 22g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4840799 |
Specifications may be subject to change without notice
