Product Model

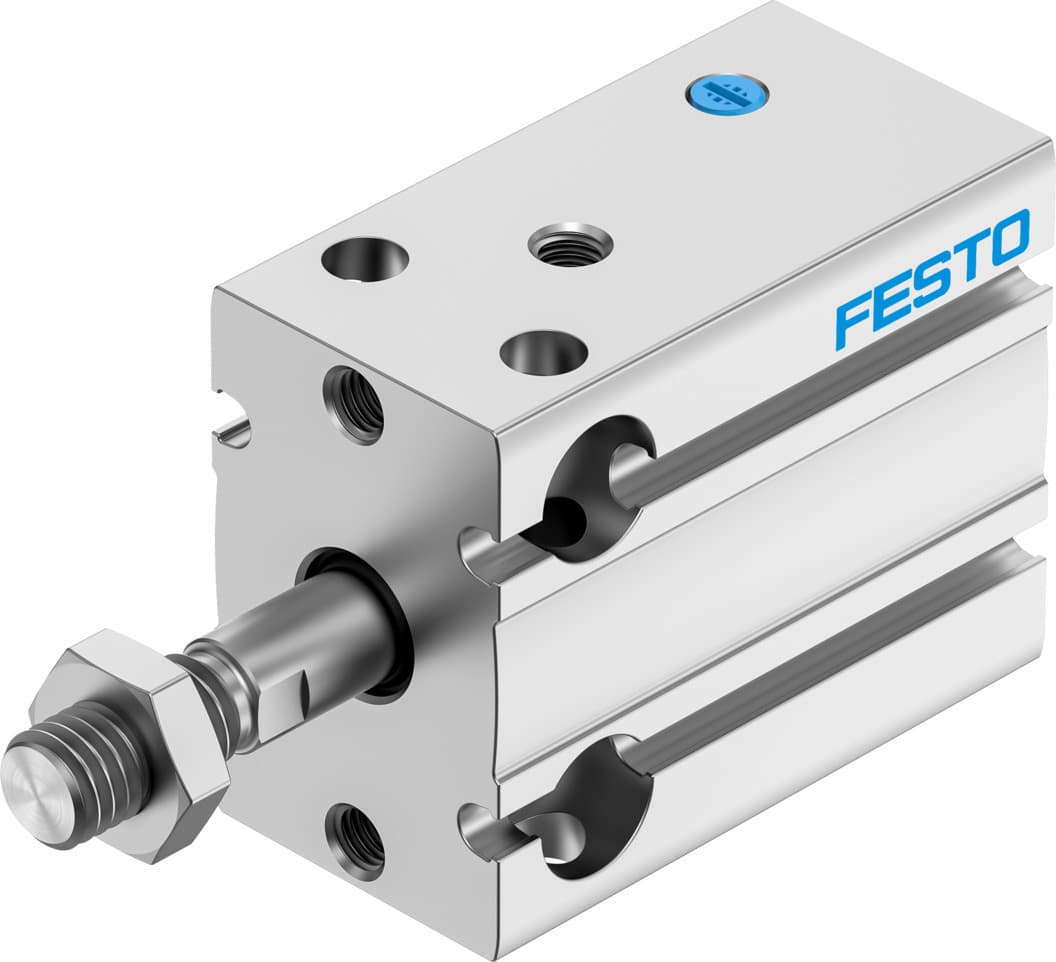

dpdm-20-5-p-pa
Selling Points
- 1The DPDM-20-5-P-PA features flexible cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the cylinder.
- 2Equipped with proximity sensors, this compact cylinder allows for precise position detection, enhancing the accuracy of your pneumatic systems.
- 3With a stroke of 5 mm and a piston diameter of 20 mm, the DPDM-20-5-P-PA is perfect for applications where space is limited.
- 4Available in single-ended piston rod variants, this cylinder offers flexibility in mounting options, making it suitable for various industrial setups.
- 5Designed to operate with compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring reliable performance in a wide range of environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 130N | Theoretical force at 6 bar, advancing | 130N |
Moving mass at 0?mm stroke | 34.5g | Additional moving mass per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 128g | Additional weight per 10?mm stroke | 22g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840810 |
Specifications may be subject to change without notice
