Product Model

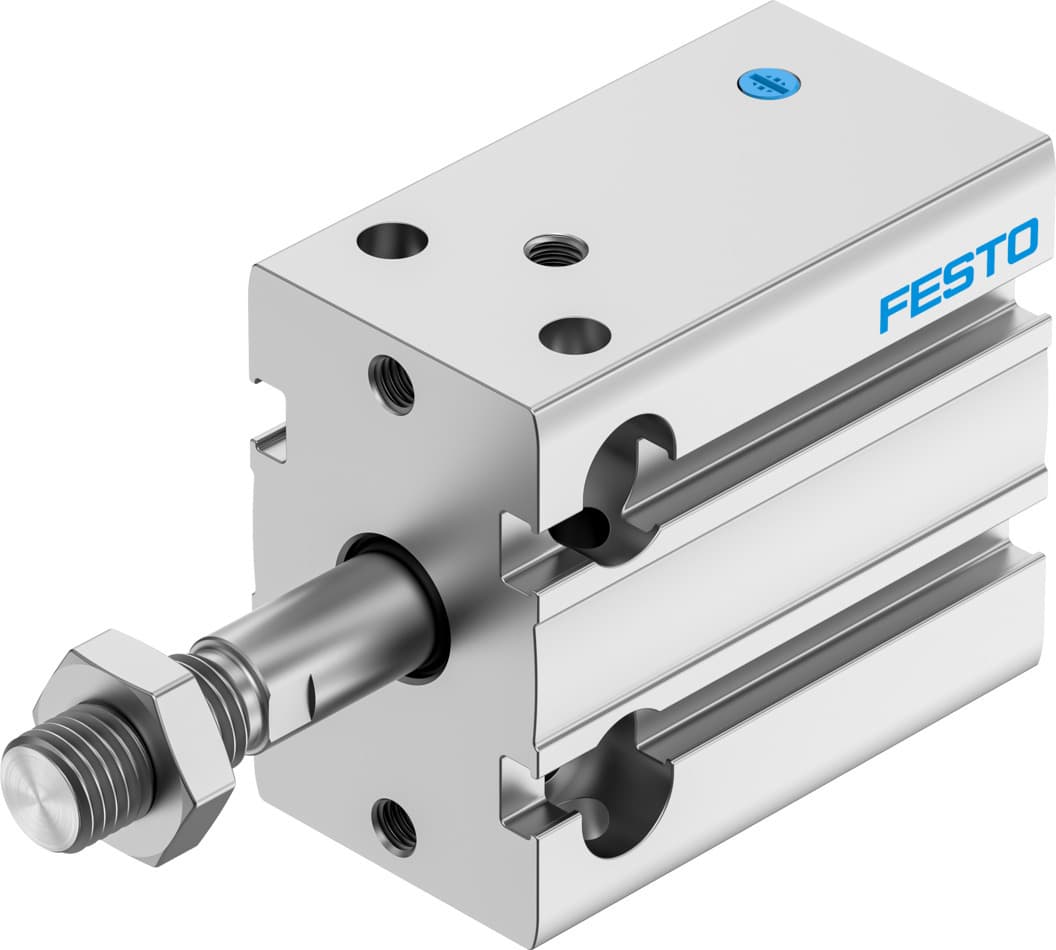

dpdm-25-10-p-pa
Selling Points
- 1The DPDM-25-10-PA features a compact design, making it ideal for space-constrained applications.
- 2This cylinder operates at pressures ranging from 0.15 MPa to 0.8 MPa, ensuring robust performance in various environments.
- 3Equipped with elastic cushioning rings/plates at both ends, it provides smooth operation and reduces wear on the cylinder.
- 4The DPDM-25-10-PA offers optional mounting positions, allowing for flexible installation in different setups.
- 5Built with a moderate corrosion resistance class (CRC 2) and conforming to LABS (PWIS) standards, it ensures durability in various industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 221N | Theoretical force at 6 bar, advancing | 221N |
Moving mass at 0?mm stroke | 58g | Additional moving mass per 10?mm stroke | 6.5g |
Basic weight with 0?mm stroke | 208g | Additional weight per 10?mm stroke | 33.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4829867 |
Specifications may be subject to change without notice
