Product Model

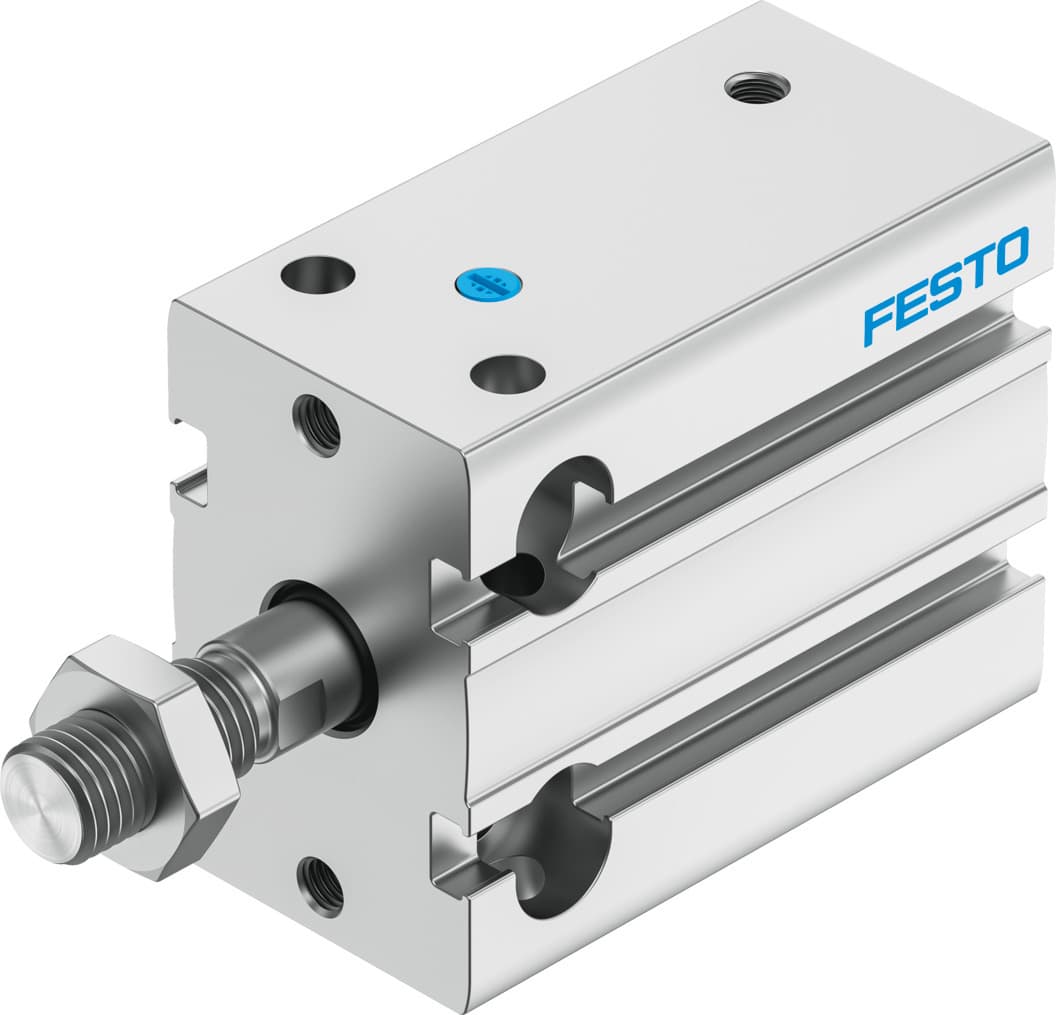

dpdm-25-15-s-pa
Selling Points
- 1The DPDM-25-15-PA operates at pressures from 1 to 8 bar, ensuring reliable performance in various industrial settings.
- 2With a stroke of 15 mm and a piston diameter of 25 mm, this cylinder is ideal for applications requiring precise and compact motion control.
- 3Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 4The cylinder can be mounted in any position, offering flexibility in installation and integration into different systems.
- 5Made from RoHS-compliant materials, including anodized wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring moderate corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991729 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 269N | Theoretical force at 6 bar, advancing | 269N |
Moving mass at 0?mm stroke | 58g | Additional moving mass per 10?mm stroke | 6.5g |
Basic weight with 0?mm stroke | 192g | Additional weight per 10?mm stroke | 33.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4829801 |
Specifications may be subject to change without notice
