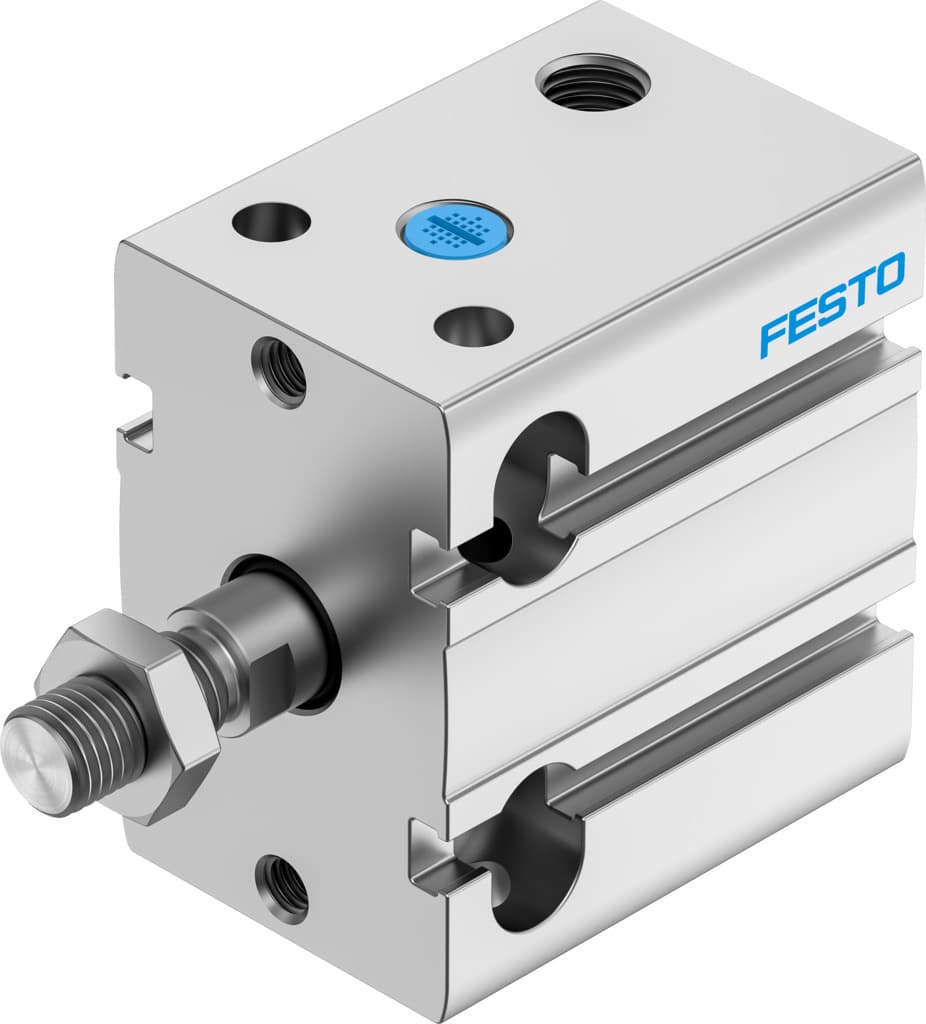

Festo DPDM-32-10-S-PA Pneumatic Cylinder - High-Quality Compact Design

Selling Points

1The Festo DPDM-32-10-S-PA pneumatic cylinder boasts a compact design, making it perfect for space-constrained applications.
2Equipped with elastic cushioning at both ends, this cylinder ensures smooth operation and reduces wear on components.
3The built-in magnet allows for precise position sensing, enhancing the accuracy of your pneumatic system.
4Available in both through-hole and internal threaded mounts, this cylinder offers flexibility in installation.
5Classified as CRC Class 1, this cylinder exhibits low-corrosion stress, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	32 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Pushing Single-acting	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991729
Variants	Piston rod at one end	Operating pressure	1.5bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Theoretical force at 6 bar	445N	Theoretical force at 6 bar, advancing	445N
Moving mass at 0?mm stroke	85g	Additional moving mass per 10?mm stroke	9g
Basic weight with 0?mm stroke	310g	Additional weight per 10?mm stroke	51g
Type of mounting	Optionally: With through-hole With internal thread	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy, anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	4828429

Specifications may be subject to change without notice
