Product Model

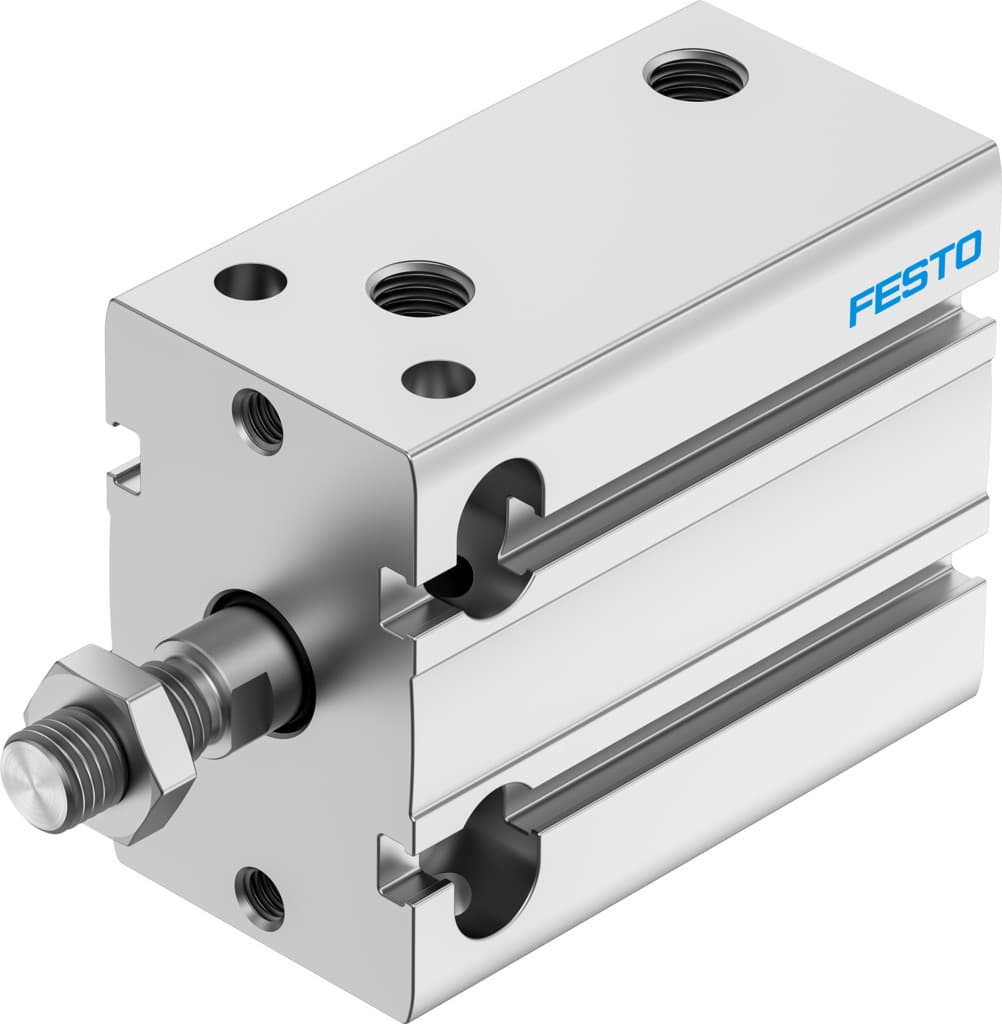

dpdm-32-30-pa
Selling Points
- 1The DPDM-32-30-PA is built with anodized wrought aluminum alloy housing and high-alloy stainless steel piston rod, ensuring durability and resistance to corrosion.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear on the piston.
- 3Designed for double-acting functionality, the DPDM-32-30-PA can operate in both directions, enhancing its versatility in various industrial applications.
- 4Compatible with proximity switches, this cylinder offers precise position detection, ensuring accurate control and monitoring.
- 5With a compact design and multimount capabilities, the DPDM-32-30-PA is easy to integrate into various systems, making it a versatile choice for pneumatic solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 483N | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 85g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 307g |
Additional weight per 10?mm stroke | 51g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4828440 |
Specifications may be subject to change without notice
