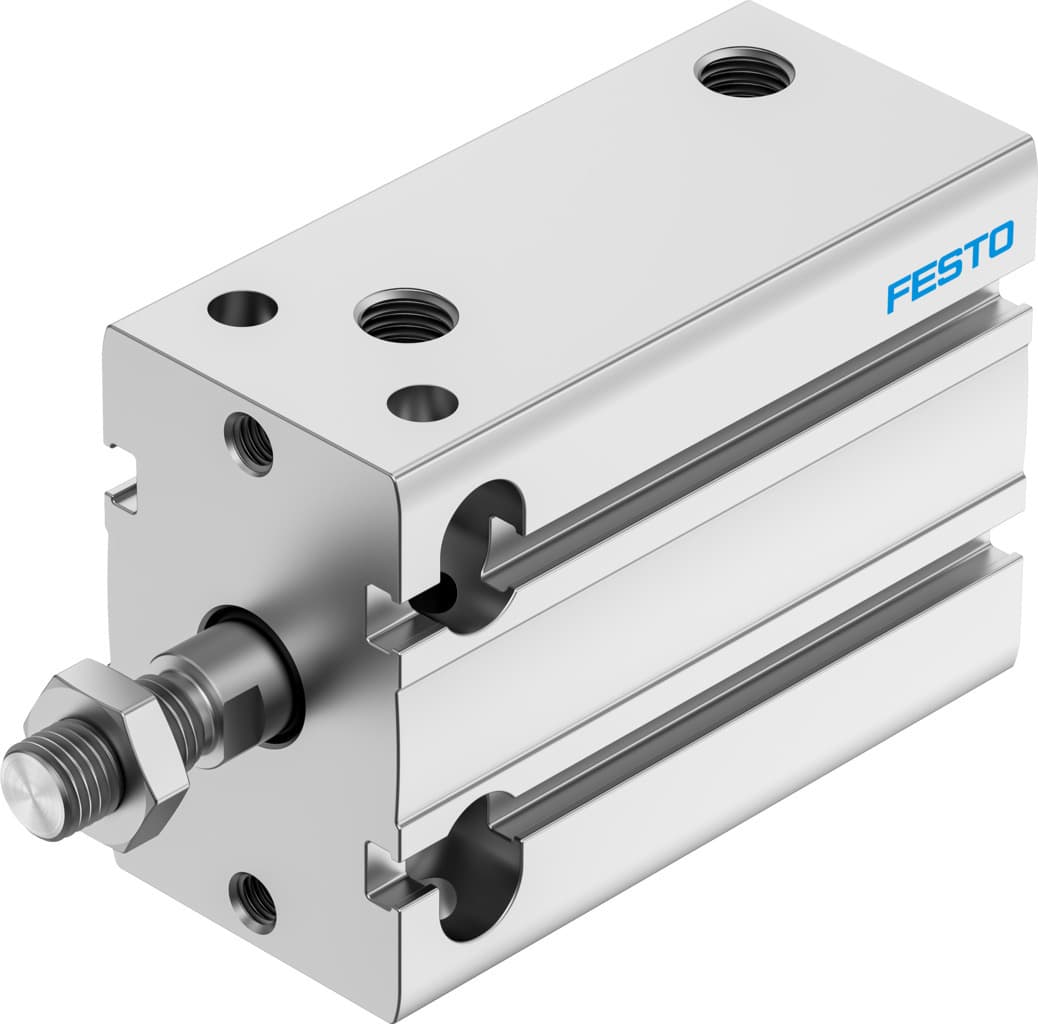

Product Model
dpdm-32-40-pa
Selling Points
- 1The Festo DPDM-32-40-PA is engineered for reliability, ensuring consistent performance in demanding applications.
- 2Available for any mounting position, this compact cylinder offers flexibility in installation, making it suitable for a wide range of setups.
- 3Equipped with elastic cushioning rings/pads at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 4Designed for double-acting operation, the DPDM-32-40-PA can handle both advancing and retracting strokes, enhancing its versatility.
- 5Operating pressure ranges from 1 bar to 8 bar, making it adaptable to various pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 483N | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 85g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 307g |
Additional weight per 10?mm stroke | 51g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4828441 |
Specifications may be subject to change without notice
