Product Model
dpdm-6-10-p-pa
Selling Points

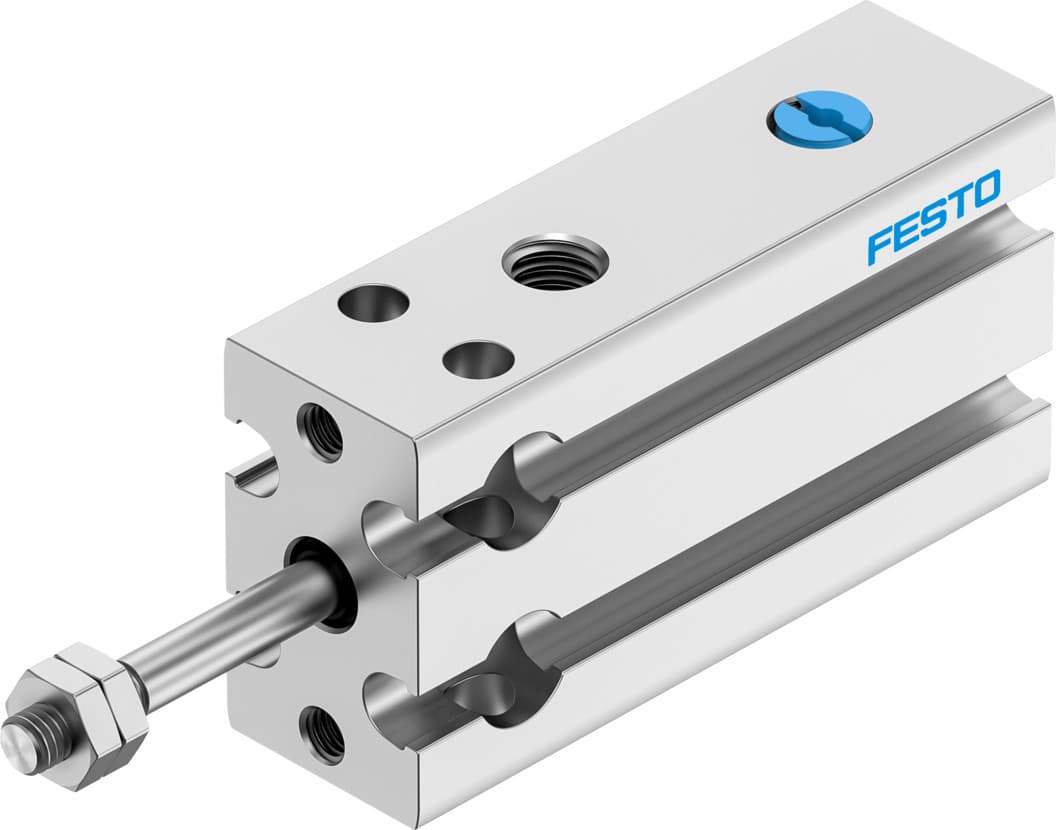

- 1The Festo DPDM-6-10-P-PA is a high-performance pneumatic cylinder engineered for precision and reliability in industrial applications.
- 2This cylinder features robust construction and efficient motion control, making it suitable for demanding tasks in manufacturing and automation.
- 3With its durable design and precise control, the DPDM-6-10-P-PA ensures consistent performance in various industrial settings.
- 4The DPDM-6-10-P-PA is designed to handle heavy loads and provide smooth operation, reducing wear and tear on machinery.
- 5Ideal for use in assembly lines, material handling systems, and other industrial processes where reliability and precision are paramount.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991850 |
Variants | Piston rod at one end | Operating pressure | 2.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar, retracting | 9N | Theoretical force at 6 bar, advancing | 9N |
Moving mass at 0?mm stroke | 3g | Additional moving mass per 10?mm stroke | 0.6g |
Basic weight with 0?mm stroke | 21g | Additional weight per 10?mm stroke | 6.3g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830947 |
Specifications may be subject to change without notice
