Product Model

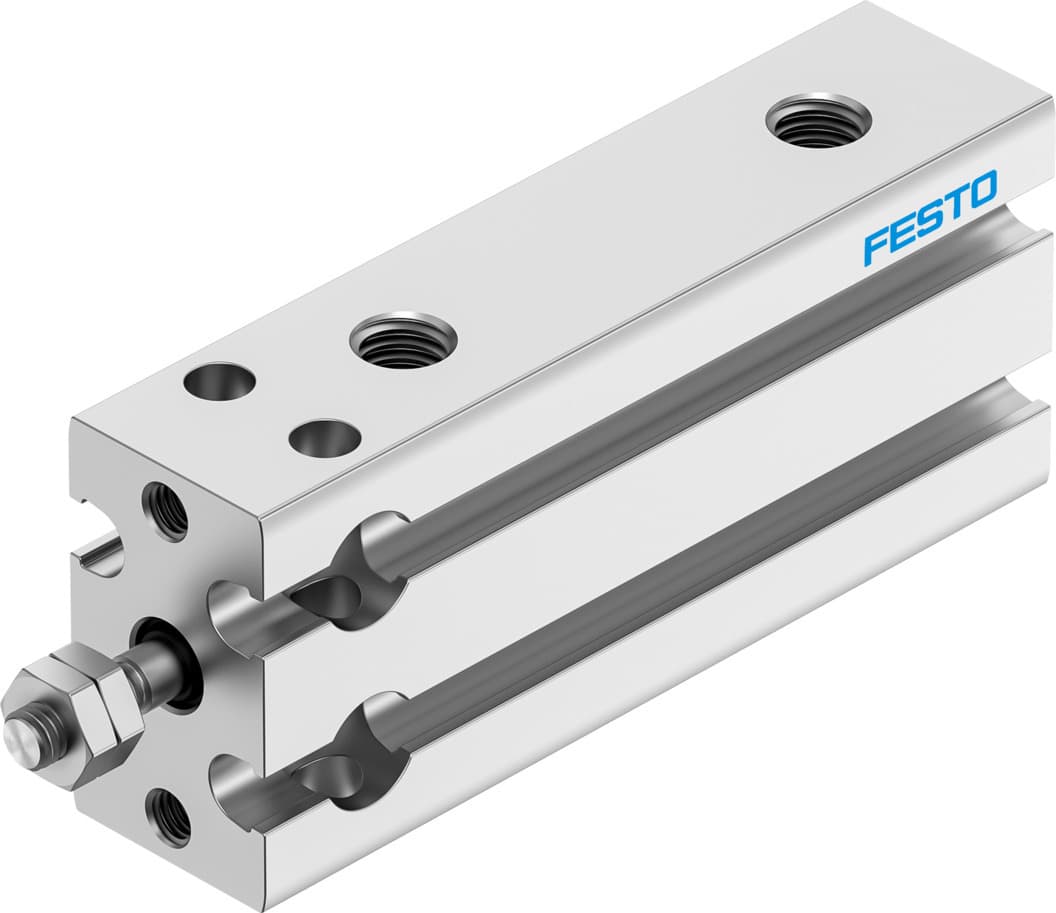

dpdm-6-20-pa
Selling Points
- 1The Festo DPDM-6-20-PA is designed for space efficiency, making it perfect for applications where size is a concern.
- 2This cylinder operates in both directions, allowing for more versatile and efficient use in various applications.
- 3Equipped with elastic cushioning rings/plates at both ends, it reduces noise and vibration, ensuring smoother operation.
- 4The cylinder can be mounted in any position, providing flexibility in installation and application.
- 5Designed to operate with compressed air in accordance with ISO 8573-1:2010 [7:4:4], it ensures reliable performance in a variety of environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.8bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 17N | Theoretical force at 6 bar, retracting | 13N |
Theoretical force at 6 bar, advancing | 17N | Moving mass at 0?mm stroke | 2.8g |
Additional moving mass per 10?mm stroke | 0.6g | Basic weight with 0?mm stroke | 20.7g |
Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4830903 |
Specifications may be subject to change without notice
