Product Model

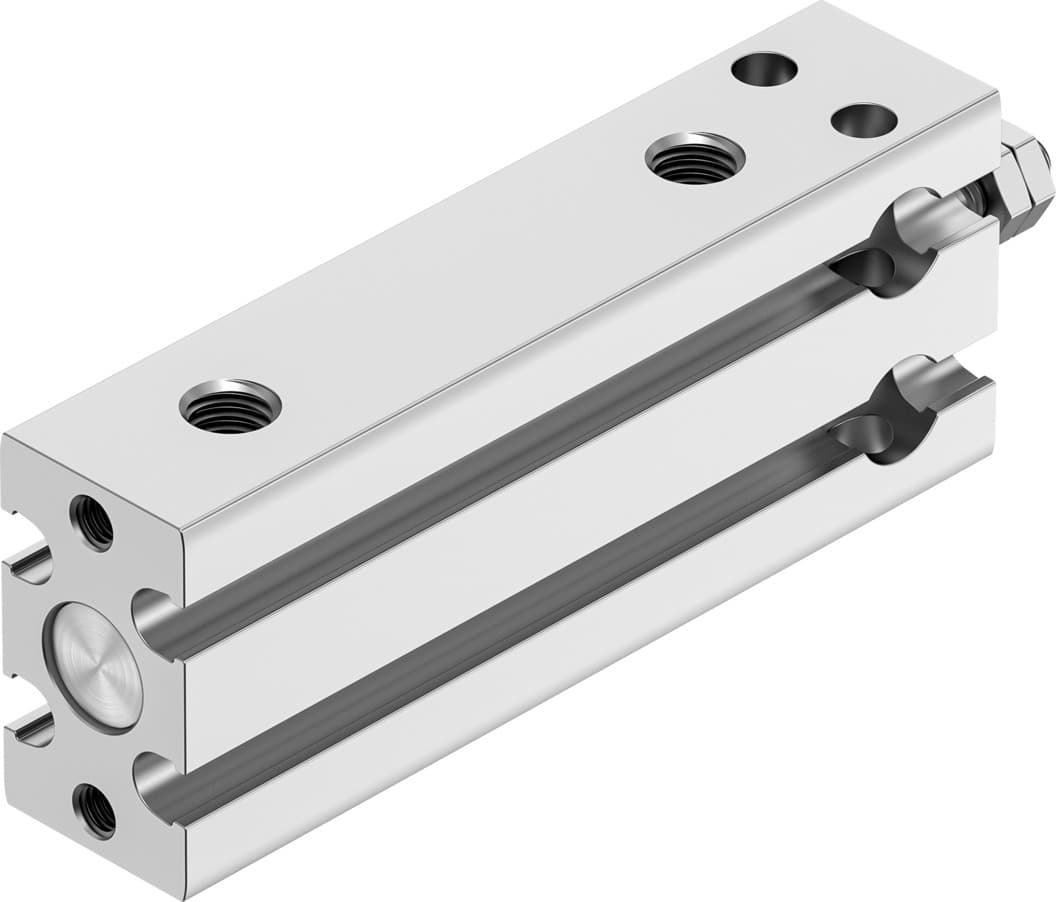

dpdm-6-25-pa
Selling Points
- 1The DPDM-6-25-PA is a compact cylinder designed for efficient use in various applications, offering a 6mm piston diameter and a 25mm stroke.
- 2Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3Suitable for double-acting operations, the DPDM-6-25-PA can handle both advancing and retracting strokes, making it versatile for different applications.
- 4Designed to operate with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder ensures reliable performance in pneumatic systems.
- 5With a low corrosion stress class (CRC) 1 and conformity to VDMA24364-B2-L, the DPDM-6-25-PA is suitable for use in various environments, including cleanrooms (Class 6 according to ISO 14644-1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.8bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 17N | Theoretical force at 6 bar, retracting | 13N |
Theoretical force at 6 bar, advancing | 17N | Moving mass at 0?mm stroke | 2.8g |
Additional moving mass per 10?mm stroke | 0.6g | Basic weight with 0?mm stroke | 20.7g |
Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4830904 |
Specifications may be subject to change without notice
