Product Model
dpdm-6-5-s-pa
Selling Points

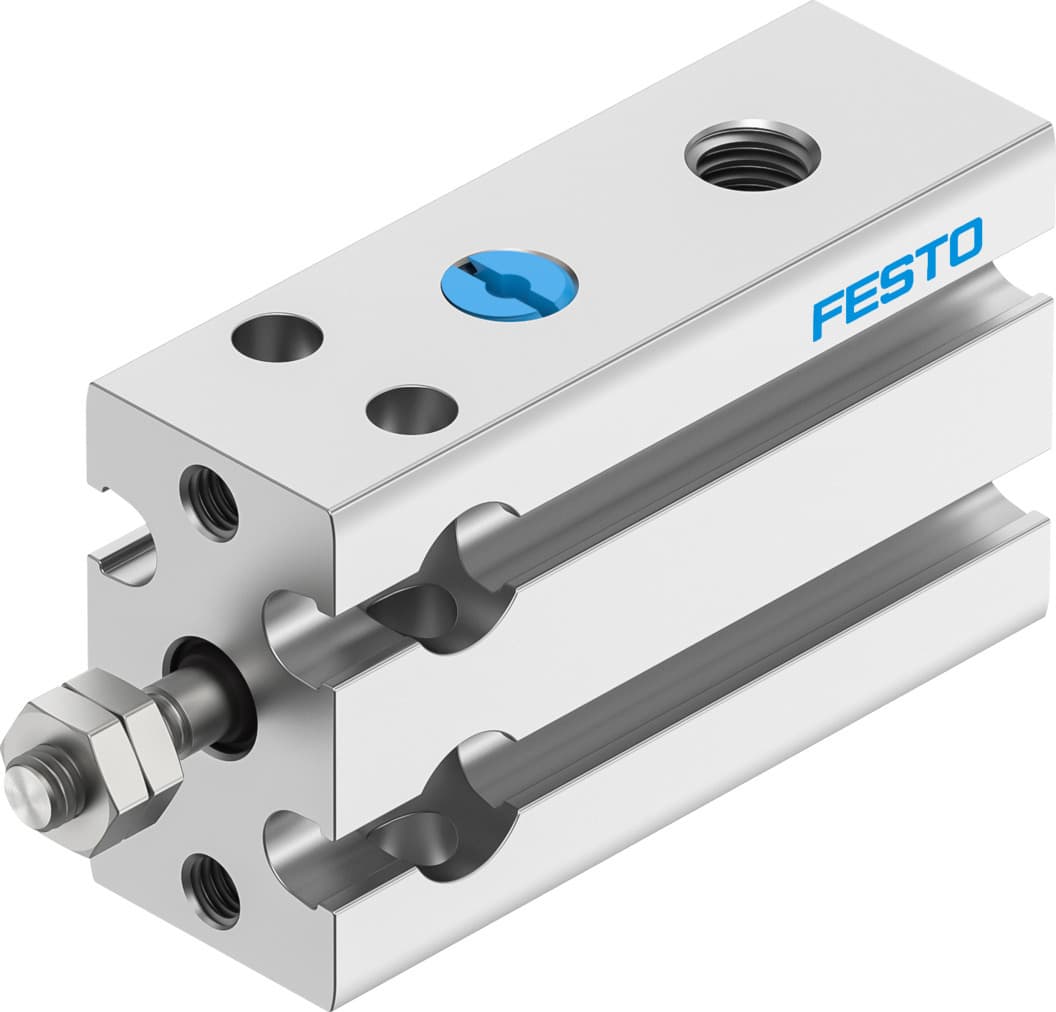

- 1The Festo DPDM-6-5-S-PA compact cylinder boasts a 6mm piston diameter and a 5mm stroke, making it perfect for precise and efficient pneumatic operations in various industrial settings.
- 2Equipped with elastic cushioning rings at both ends, this cylinder ensures smooth and controlled movement, reducing wear and tear on the system.
- 3The DPDM-6-5-S-PA supports double-acting operation, allowing for both forward and return strokes, enhancing the versatility and functionality of your pneumatic system.
- 4With an operating pressure range of 2.5 to 8 bar, this compact cylinder is designed to handle a variety of applications, from light to medium-duty tasks.
- 5Constructed from high-quality materials including wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991729 |
Variants | Piston rod at one end | Operating pressure | 2.5bar 8bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Theoretical force at 6 bar | 13N | Theoretical force at 6 bar, advancing | 13N |
Moving mass at 0?mm stroke | 3g | Additional moving mass per 10?mm stroke | 0.6g |
Basic weight with 0?mm stroke | 21g | Additional weight per 10?mm stroke | 6.3g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830909 |
Specifications may be subject to change without notice
