Product Model

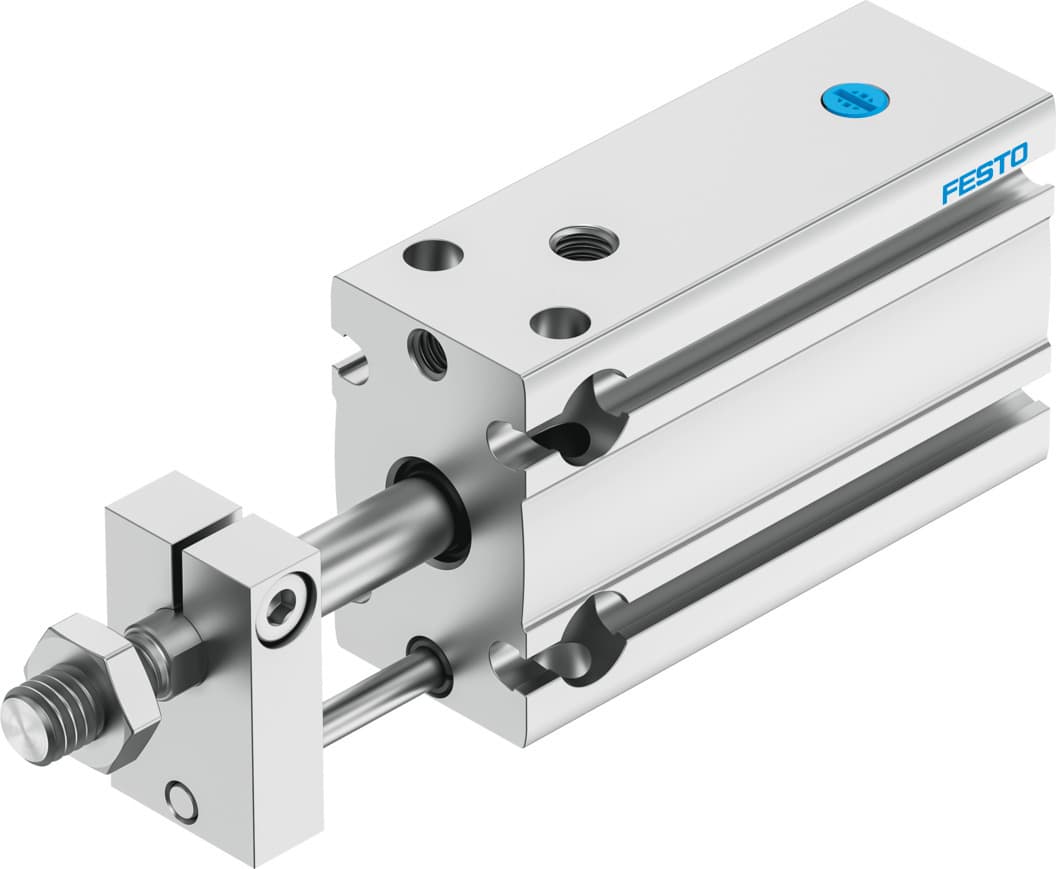

dpdm-q-16-15-p-pa
Selling Points
- 1The Festo DPDM-Q-16-15-P-PA compact cylinder is built with high-quality materials, ensuring durability and reliability in various industrial applications.
- 2This cylinder offers flexible mounting positions, allowing for easy integration into different systems and configurations.
- 3Designed for single-acting operations, the DPDM-Q-16-15-P-PA is perfect for applications requiring pulling action, such as in automation and robotics.
- 4Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear on the piston and cylinder walls.
- 5With a compact design and short stroke of 15mm, the DPDM-Q-16-15-P-PA is ideal for applications where space is limited, such as in robotics and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991733 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 93N |
Theoretical force at 6 bar, advancing | 93N | Moving mass at 0?mm stroke | 27g |
Additional moving mass per 10?mm stroke | 2.8g | Basic weight with 0?mm stroke | 75g |
Additional weight per 10?mm stroke | 13.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4834382 |
Specifications may be subject to change without notice
