Product Model
dpdm-q-20-10-s-pa
Selling Points

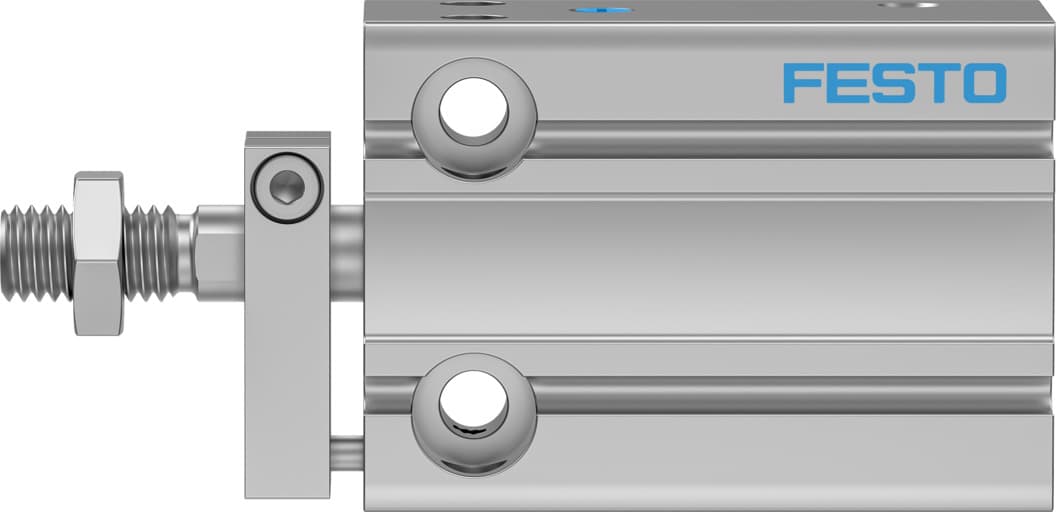

- 1The Festo DPDM-Q-20-10-S-PA compact pneumatic cylinder is designed with a 20mm piston diameter and 10mm stroke, ensuring precise movement and long-lasting performance.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear on the components.
- 3The cylinder offers optional mounting positions, allowing for flexible installation in various applications, including those requiring precise positioning.
- 4Designed for double-acting operation, the DPDM-Q-20-10-S-PA can handle both pushing and pulling forces, making it suitable for a wide range of industrial tasks.
- 5Constructed from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder ensures robustness and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 160N |
Theoretical force at 6 bar, advancing | 160N | Moving mass at 0?mm stroke | 46g |
Additional moving mass per 10?mm stroke | 4.6g | Basic weight with 0?mm stroke | 129g |
Additional weight per 10?mm stroke | 22.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4840822 |
Specifications may be subject to change without notice
