Product Model
dpdm-q-20-15-pa
Selling Points

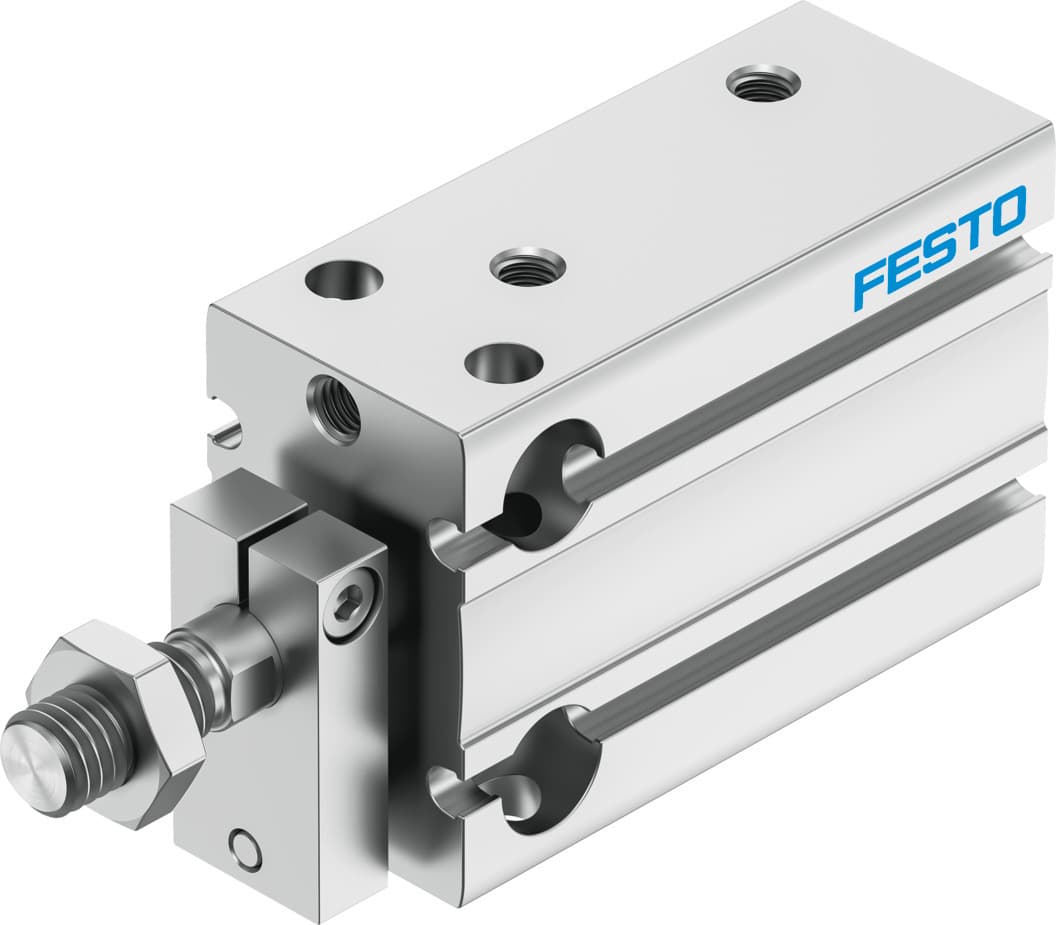

- 1The Festo DPDM-Q-20-15-PA is a single-acting compact cylinder with a 20mm piston diameter and 15mm stroke, making it perfect for space-constrained applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear.
- 3The DPDM-Q-20-15-PA offers optional mounting positions, allowing for flexibility in installation and integration into various systems.
- 4With a corrosion resistance class of CRC 2 and LABS (PWIS) conformity, this cylinder is suitable for applications requiring moderate corrosion stress resistance.
- 5Operating pressures range from 0.2 MPa to 8 bar, and it can handle ambient temperatures from -10°C to 80°C, ensuring versatility in different environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 188N |
Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
Moving mass at 0?mm stroke | 46g | Additional moving mass per 10?mm stroke | 4.6g |
Basic weight with 0?mm stroke | 140g | Additional weight per 10?mm stroke | 22.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840815 |
Specifications may be subject to change without notice
