Product Model
dpdm-q-20-15-s-pa
Selling Points

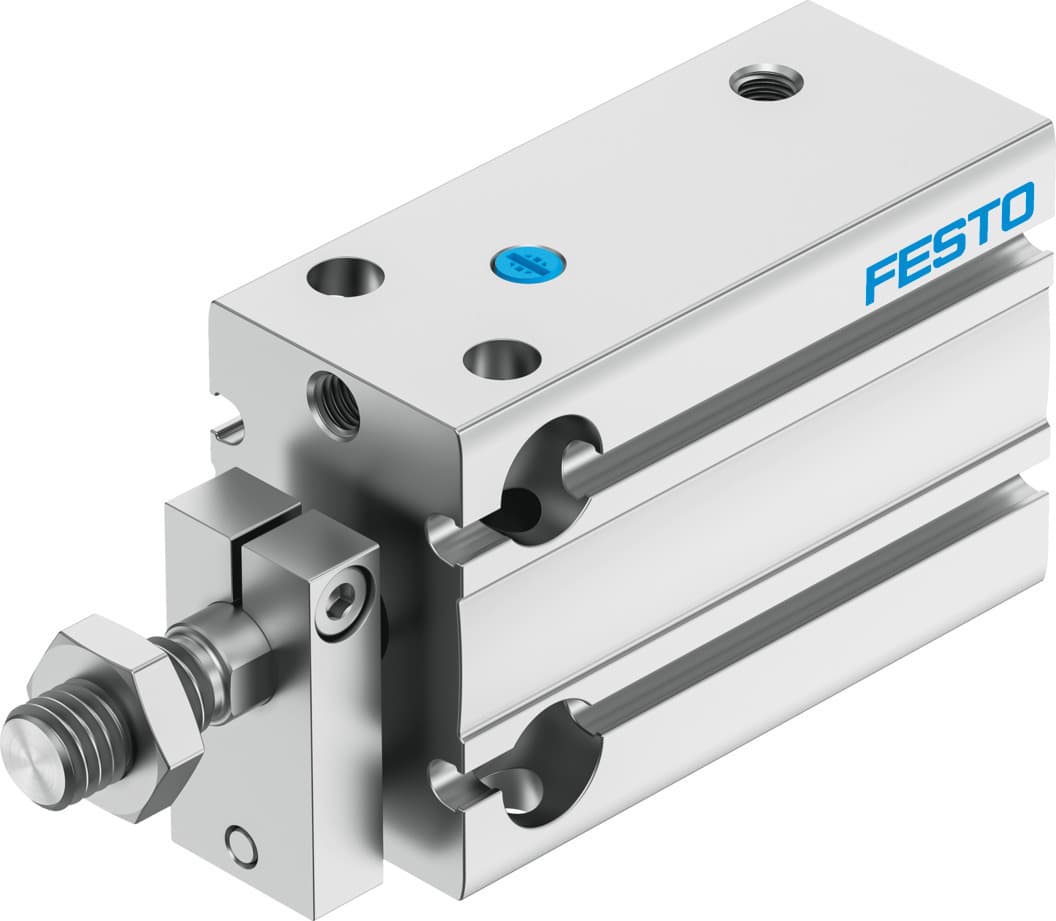

- 1The Festo DPDM-Q-20-15-S-PA compact cylinder offers precise control with a 20mm piston diameter and 15mm stroke, ensuring reliable performance in various industrial applications.
- 2Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear on the moving parts, enhancing overall durability.
- 3The DPDM-Q-20-15-S-PA allows for flexible mounting options, making it easy to integrate into different system configurations and environments.
- 4Designed for single-acting operations, this cylinder is perfect for applications requiring pushing or pulling forces, such as in assembly or material handling systems.
- 5Built with high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder meets Class 6 cleanroom standards and has moderate corrosion resistance, ensuring it can operate in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 160N |
Theoretical force at 6 bar, advancing | 160N | Moving mass at 0?mm stroke | 46g |
Additional moving mass per 10?mm stroke | 4.6g | Basic weight with 0?mm stroke | 129g |
Additional weight per 10?mm stroke | 22.5g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4840823 |
Specifications may be subject to change without notice
