Product Model
dpdm-q-20-30-pa
Selling Points

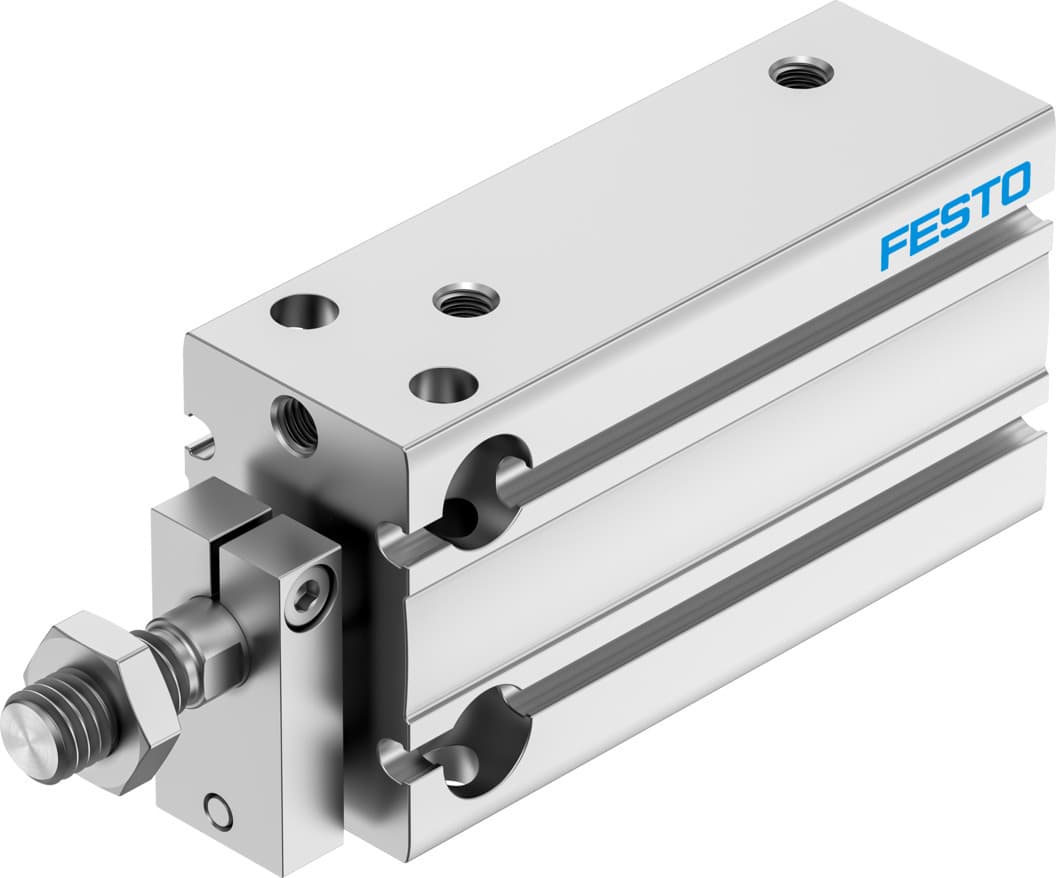

- 1The Festo DPDM-Q-20-30-PA is a compact pneumatic cylinder designed for space-efficient installations, making it ideal for various industrial applications.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing its versatility in different operational scenarios.
- 3Equipped with elastic cushioning rings/pads at both ends, the DPDM-Q-20-30-PA ensures smooth operation and reduces wear and tear on the cylinder.
- 4The cylinder can be mounted in any position, offering flexibility in installation and integration with other components.
- 5Constructed from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 188N |
Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
Moving mass at 0?mm stroke | 46g | Additional moving mass per 10?mm stroke | 4.6g |
Basic weight with 0?mm stroke | 140g | Additional weight per 10?mm stroke | 22.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840818 |
Specifications may be subject to change without notice
