Product Model
dpdm-q-20-50-pa
Selling Points

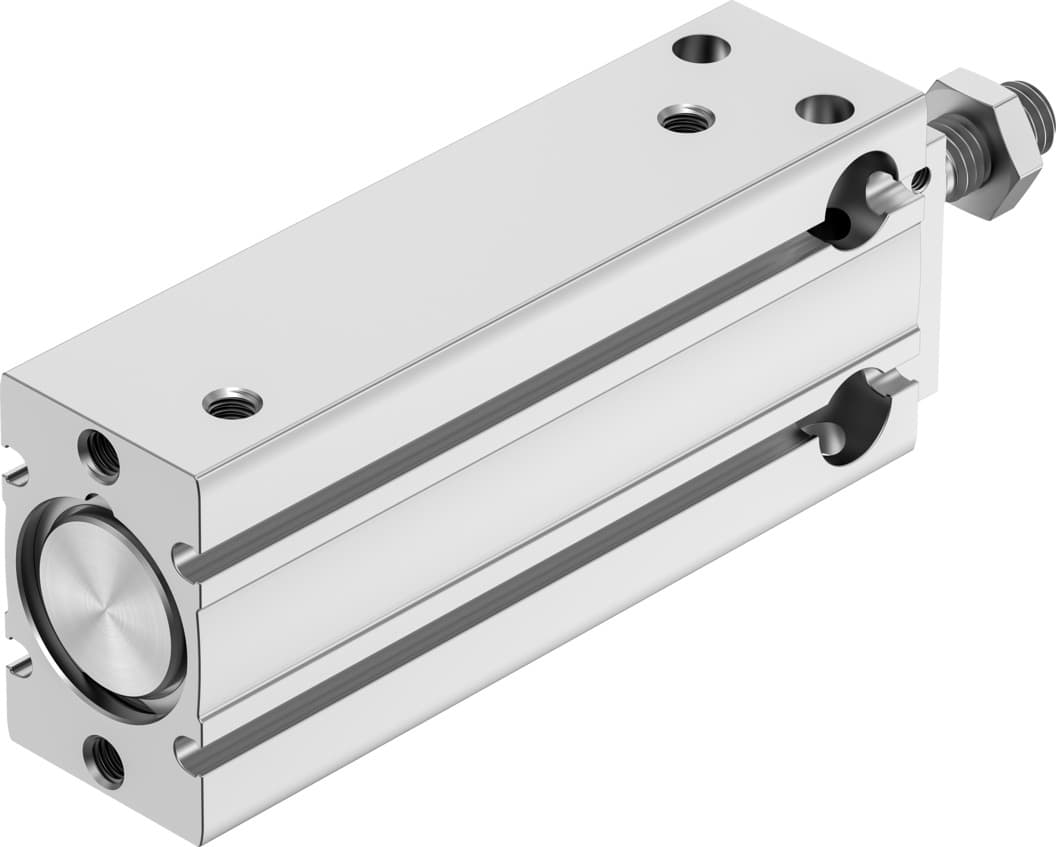

- 1The Festo DPDM-Q-20-50-PA compact air cylinder offers a 50mm stroke and a 20mm piston diameter, making it suitable for a variety of pneumatic applications.
- 2This cylinder features elastic cushioning rings at both ends for smooth operation and reduced wear, ensuring reliable performance.
- 3The DPDM-Q-20-50-PA is designed for double-acting operations, allowing for both extension and retraction strokes, enhancing versatility in your projects.
- 4With a corrosion resistance class of 2 (moderate corrosion stress), this cylinder is suitable for applications where some exposure to corrosive environments is expected.
- 5The Festo DPDM-Q-20-50-PA is constructed with high-quality materials, including wrought aluminum alloy for the housing, high-alloy stainless steel for the piston rod, and TPE-U(PU) seals, ensuring durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 20 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 188N |
Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
Moving mass at 0?mm stroke | 46g | Additional moving mass per 10?mm stroke | 4.6g |
Basic weight with 0?mm stroke | 140g | Additional weight per 10?mm stroke | 22.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840820 |
Specifications may be subject to change without notice
