Product Model

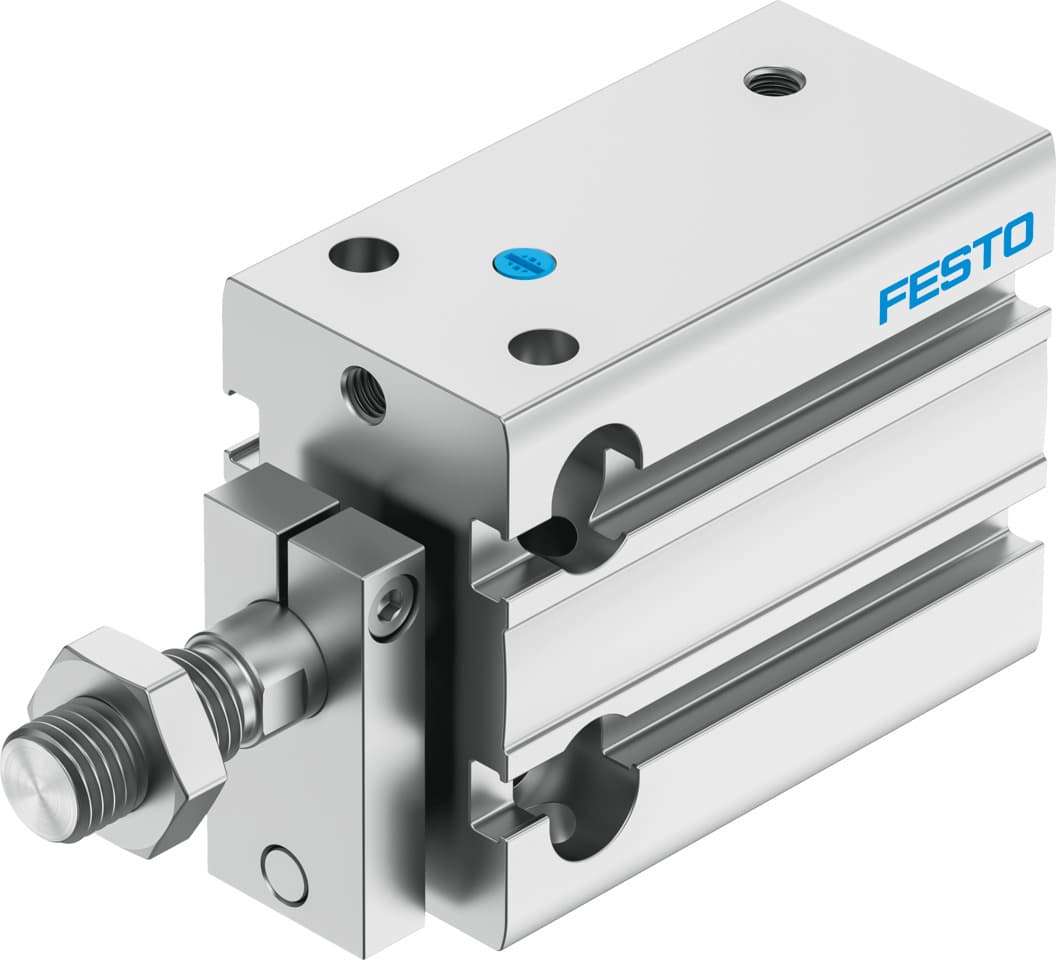

dpdm-q-25-15-s-pa
Selling Points
- 1The Festo DPDM-Q-25-15-S-PA is designed for precision applications, ensuring reliable and consistent performance in various industrial settings.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder minimizes shock and vibration, extending the lifespan of your equipment.
- 3The DPDM-Q-25-15-S-PA offers an optional mounting position, providing flexibility in installation and integration with your existing systems.
- 4The cylinder features thermoplastic polyurethane (TPE-U(PU)) static seals, ensuring durability and resistance to various environmental conditions.
- 5With a piston diameter of 25 mm and a stroke length of 15 mm, this compact cylinder is perfect for applications requiring precise control and movement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 269N |
Theoretical force at 6 bar, advancing | 269N | Moving mass at 0?mm stroke | 76g |
Additional moving mass per 10?mm stroke | 8g | Basic weight with 0?mm stroke | 210g |
Additional weight per 10?mm stroke | 35g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4840837 |
Specifications may be subject to change without notice
