Product Model
dpdm-q-25-25-pa
Selling Points

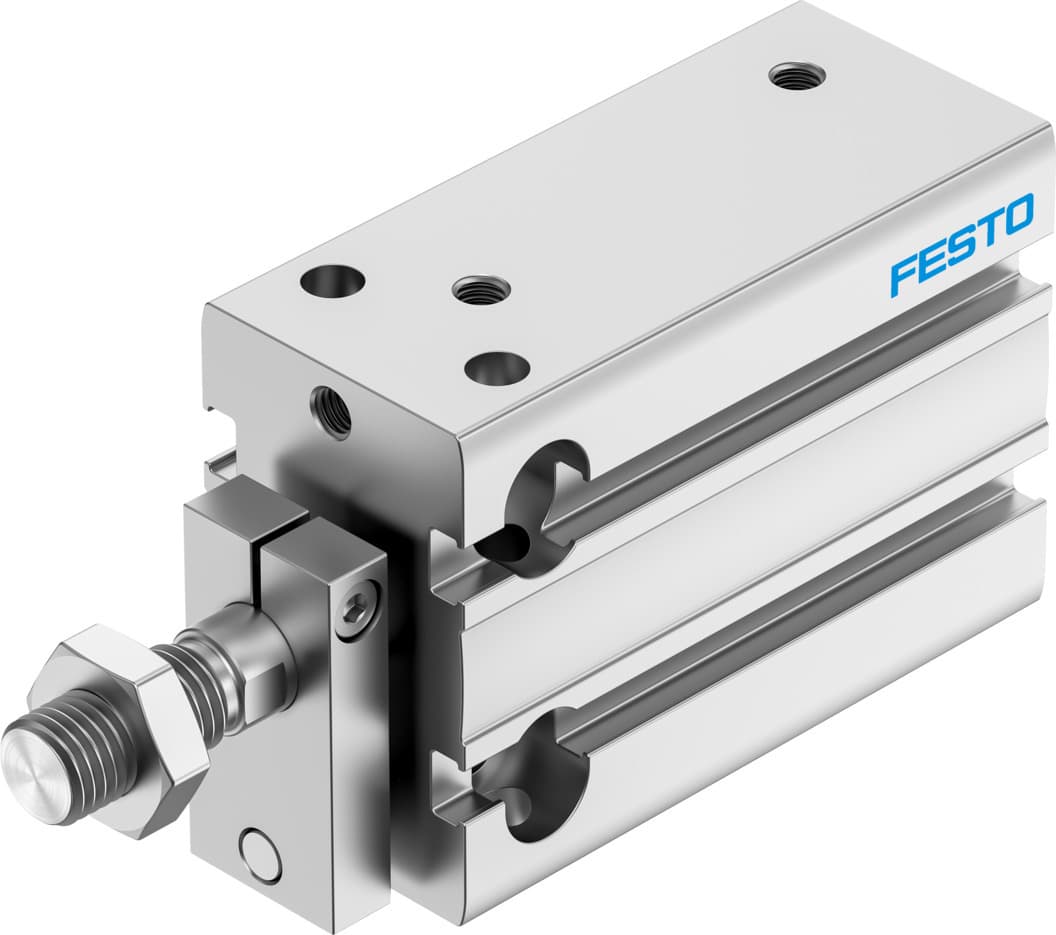

- 1The Festo DPDM-Q-25-25-PA compact cylinder offers a 25mm stroke and 25mm piston diameter, making it suitable for a variety of industrial applications.
- 2This double-acting cylinder features elastic cushioning rings/plates at both ends, ensuring smooth operation and reduced wear.
- 3The DPDM-Q-25-25-PA supports optional mounting positions, allowing for versatile installation in different settings.
- 4With a corrosion resistance class of CRC 2 and LABS (PWIS) conformity, this cylinder is designed to withstand moderate corrosion stress in various environments.
- 5The Festo DPDM-Q-25-25-PA operates within a temperature range of -10 °C to 80 °C and is compatible with compressed air to ISO 8573-1:2010, ensuring reliable performance in a wide range of conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 295N |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Moving mass at 0?mm stroke | 76g | Additional moving mass per 10?mm stroke | 8g |
Basic weight with 0?mm stroke | 223g | Additional weight per 10?mm stroke | 35g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840828 |
Specifications may be subject to change without notice
