Product Model

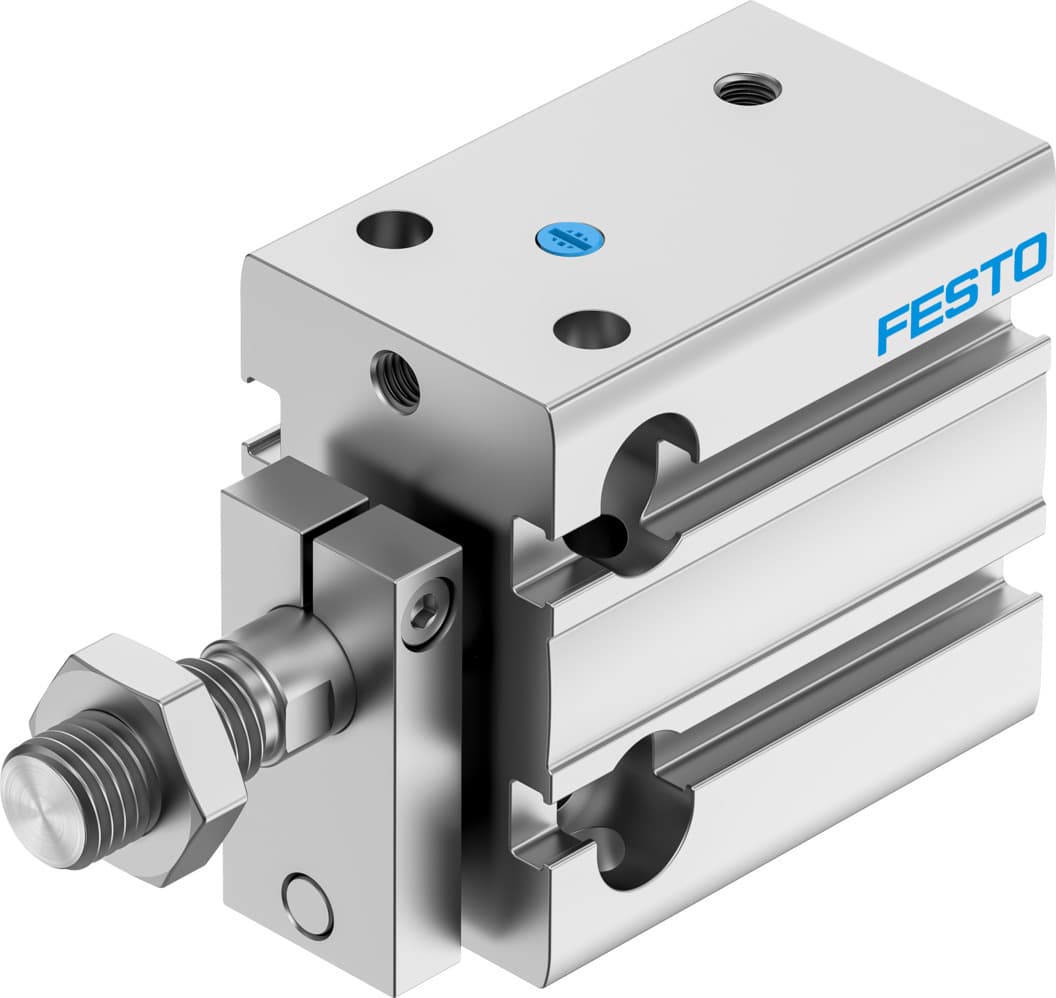

dpdm-q-25-5-s-pa
Selling Points
- 1The Festo DPDM-Q-25-5-S-PA is engineered for compact spaces, making it ideal for various industrial applications where space is limited.
- 2Constructed from high-quality materials, this pneumatic cylinder ensures durability and reliability in demanding industrial environments.
- 3Equipped with a 25mm piston diameter and a 5mm stroke length, this cylinder offers precise and controlled movements.
- 4Operating on compressed air, the Festo DPDM-Q-25-5-S-PA provides quick and efficient actuation, enhancing productivity in industrial settings.
- 5Suitable for a variety of industrial applications, this compact cylinder is versatile and reliable, ensuring consistent performance in diverse operational conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991732 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 269N |
Theoretical force at 6 bar, advancing | 269N | Moving mass at 0?mm stroke | 76g |
Additional moving mass per 10?mm stroke | 8g | Basic weight with 0?mm stroke | 210g |
Additional weight per 10?mm stroke | 35g | Type of mounting | Optionally: With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 4840835 |
Specifications may be subject to change without notice
