Product Model
dpdm-q-32-10-pa
Selling Points

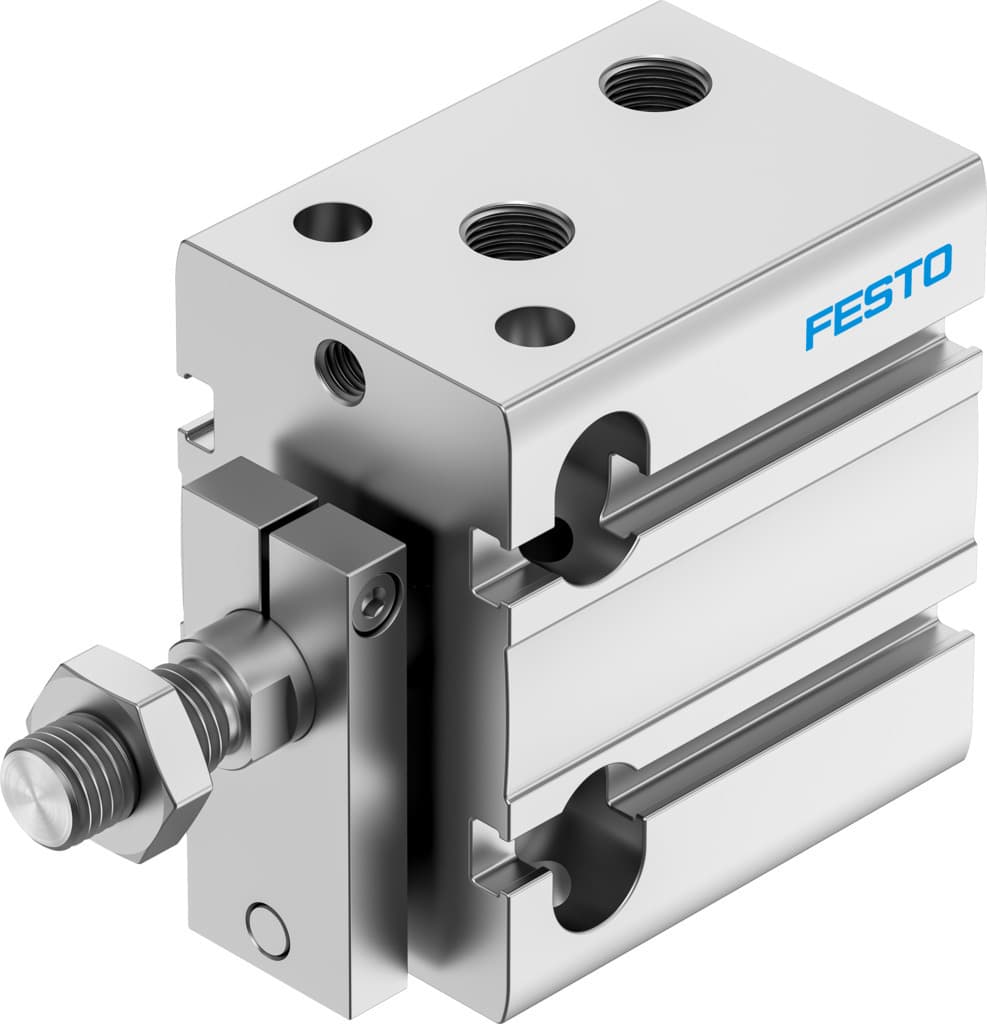

- 1The Festo DPDM-Q-32-10-PA compact cylinder boasts a 32mm piston diameter and a 10mm stroke, making it versatile for various industrial applications.
- 2Equipped with elastic cushioning rings at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3The DPDM-Q-32-10-PA operates with compressed air as per ISO 8573-1:2010 [7:4:4] and supports single-acting pulling operations.
- 4This compact cylinder features a high-alloy stainless steel piston rod and is designed for operation in ambient temperatures ranging from -10°C to 80°C.
- 5The Festo DPDM-Q-32-10-PA is RoHS compliant and offers mounting options through-hole and internal thread, ensuring easy integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 483N |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 109g | Additional moving mass per 10?mm stroke | 10.5g |
Basic weight with 0?mm stroke | 331g | Additional weight per 10?mm stroke | 52.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4828466 |
Specifications may be subject to change without notice
