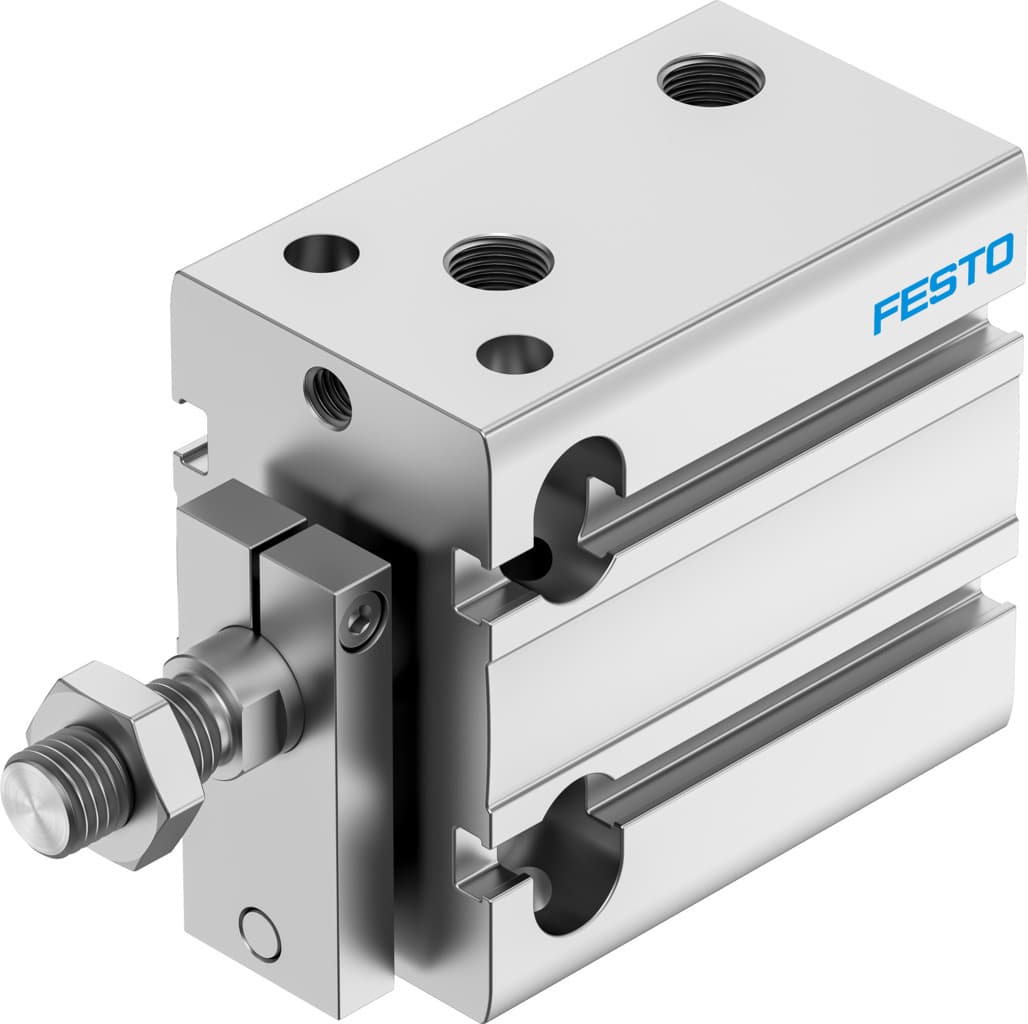

Product Model
dpdm-q-32-20-pa

Selling Points
- 1Constructed from high-quality materials, ensuring durability and long-lasting performance in various industrial applications.
- 2Designed to provide precise and reliable linear motion, ideal for packaging, material handling, and assembly tasks.
- 3Compatible with a variety of pneumatic systems and easily integratable into existing equipment, making it a versatile choice for industrial automation.
- 4Designed to be easy to install and maintain, reducing downtime and increasing operational efficiency.
- 5Capable of operating at high speeds and delivering precise positioning of loads, meeting the high standards of quality and performance that Festo is known for in the industry.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 20mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 483N |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 109g | Additional moving mass per 10?mm stroke | 10.5g |
Basic weight with 0?mm stroke | 331g | Additional weight per 10?mm stroke | 52.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4828468 |
Specifications may be subject to change without notice
