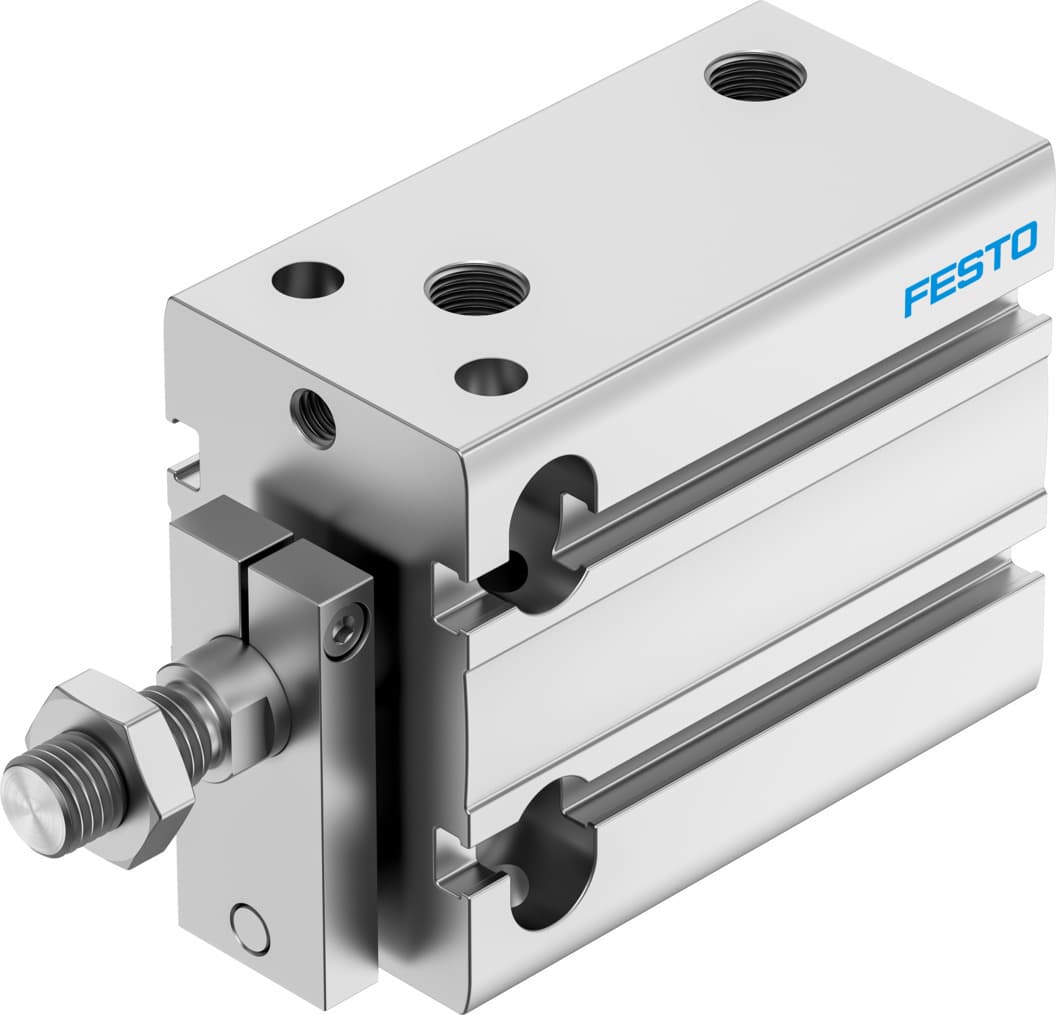

Product Model
dpdm-q-32-30-pa
Selling Points
- 1High-Quality Construction: The Festo DPDM-Q-32-30-PA is built with high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
- 2Versatile Mounting Options: This compact cylinder offers optional mounting positions, allowing for flexible installation in various applications.
- 3Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends, the DPDM-Q-32-30-PA provides smooth operation and reduces wear on the cylinder.
- 4Double-Acting Mode: Designed for double-acting operations, this cylinder can handle both forward and return strokes, making it suitable for a wide range of applications.
- 5Compressed Air Operation: Compatible with compressed air to ISO 8573-1:2010 standards, this cylinder operates efficiently in various industrial settings, including cleanroom environments (Class 6 according to ISO 14644-1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 32 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 483N |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 109g | Additional moving mass per 10?mm stroke | 10.5g |
Basic weight with 0?mm stroke | 331g | Additional weight per 10?mm stroke | 52.5g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4828470 |
Specifications may be subject to change without notice
