Product Model
dpdm-q-6-10-pa
Selling Points

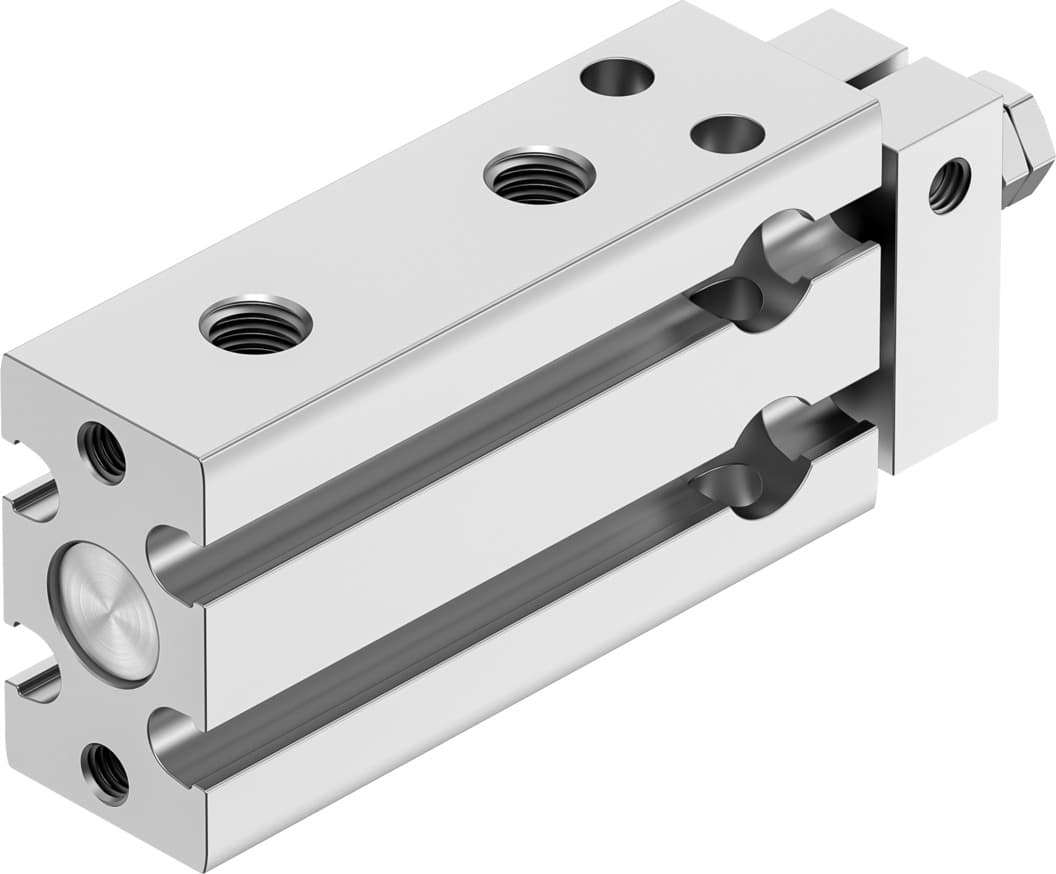

- 1The Festo DPDM-Q-6-10-PA compact cylinder boasts a 6mm piston diameter and a 10mm stroke, making it perfect for precise and efficient operations in various industrial settings.
- 2This double-acting cylinder offers elastic cushioning rings/plates at both ends, ensuring smooth operation and minimizing wear and tear.
- 3With an operating pressure range of 2 to 8 bar and compatibility with compressed air to ISO 8573-1:2010, this cylinder is versatile and reliable in different environments.
- 4The DPDM-Q-6-10-PA features a high-alloy stainless steel piston rod, providing excellent corrosion resistance and durability.
- 5This compact cylinder is designed for easy mounting with through-hole or female thread options, making it simple to integrate into your existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 6 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991737 |
Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 17N |
Theoretical force at 6 bar, retracting | 13N | Theoretical force at 6 bar, advancing | 17N |
Moving mass at 0?mm stroke | 7.1g | Additional moving mass per 10?mm stroke | 0.9g |
Basic weight with 0?mm stroke | 25.5g | Additional weight per 10?mm stroke | 6.3g |
Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830962 |
Specifications may be subject to change without notice
