Product Model
dpnc-32
Selling Points
- 1The DPNC-32 features a low corrosion stress classification (CRC 1), ensuring durability in various environments.
- 2Operates effectively between -40°C and 150°C, making it suitable for diverse industrial applications.
- 3Conforms to RoHS standards, ensuring the product is free of hazardous materials like copper and PTFE.
- 4Constructed with galvanized steel for the threaded pin and nut, providing robustness and resistance to corrosion.

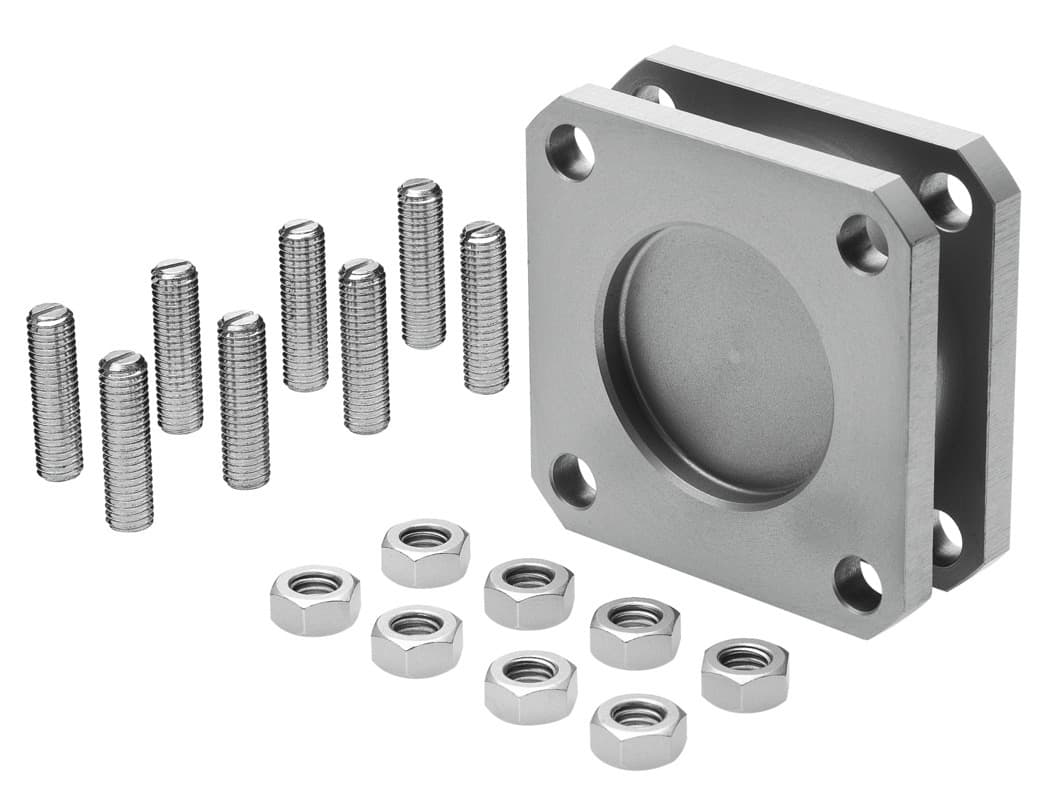

- 5Designed to connect two cylinders with identical piston diameters, forming a multi-position cylinder for enhanced functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -40°C 150°C |
Product weight | 291g | Note on materials | RoHS-compliant |
Mounting material | Steel | Threaded pin material | Steel Galvanized |
Nut material | Steel Galvanized | Manufacturer ID | 174418 |
Specifications may be subject to change without notice
