Product Model

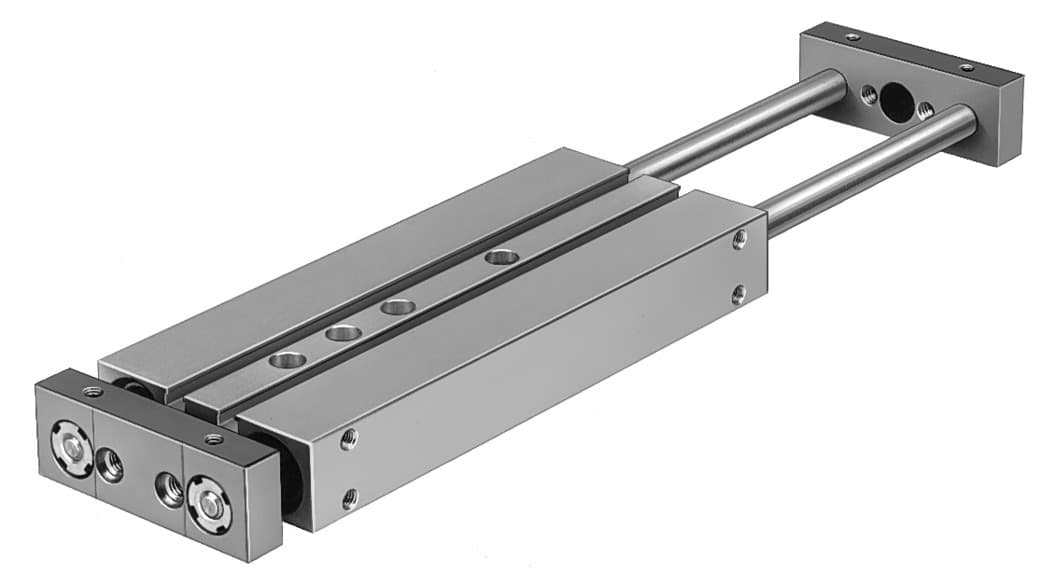

dpzj-16-25-p-a-kf-s2
Selling Points
- 1High Precision and Performance: The DPZJ-16-25-P-A-KF-S2 dual piston rod cylinder offers precise operation and robust performance, making it suitable for demanding industrial applications.
- 2Double Acting Operation: This cylinder operates in a double-acting mode, allowing for both forward and backward motion, enhancing versatility in various industrial settings.
- 3Adjustable End Position: The DPZJ-16-25-P-A-KF-S2 features an adjustable end-position range of 10 mm, providing flexibility in positioning and alignment.
- 4Corrosion Resistance: Constructed with high-alloy stainless steel piston rods and wrought aluminum alloy housing, this cylinder offers moderate corrosion resistance, suitable for indoor applications with condensation.
- 5Compressed Air Operation: Designed to operate with compressed air as per ISO 8573-1:2010 [7:4:4], this cylinder ensures reliable operation in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Adjustable end position range/length | 10mm |
Piston diameter | 16 mm | Drive unit operating mode | Yoke |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Guide | Recirculating ball bearing guide | Structural design | Guide |
Position sensing | For proximity sensor | Symbol | 00991243 |
Variants | Through piston rod | Operating pressure | 1bar 10bar |
Max. speed | 1m/s | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
Theoretical force at 6 bar, retracting | 180N | Theoretical force at 6 bar, advancing | 180N |
Alternative connections | See product drawing | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy | Seals material | NBR |
Housing material | Wrought aluminum alloy | Piston rod material | Case-hardened steel |
Manufacturer ID | 162048 |
Specifications may be subject to change without notice
