Product Model

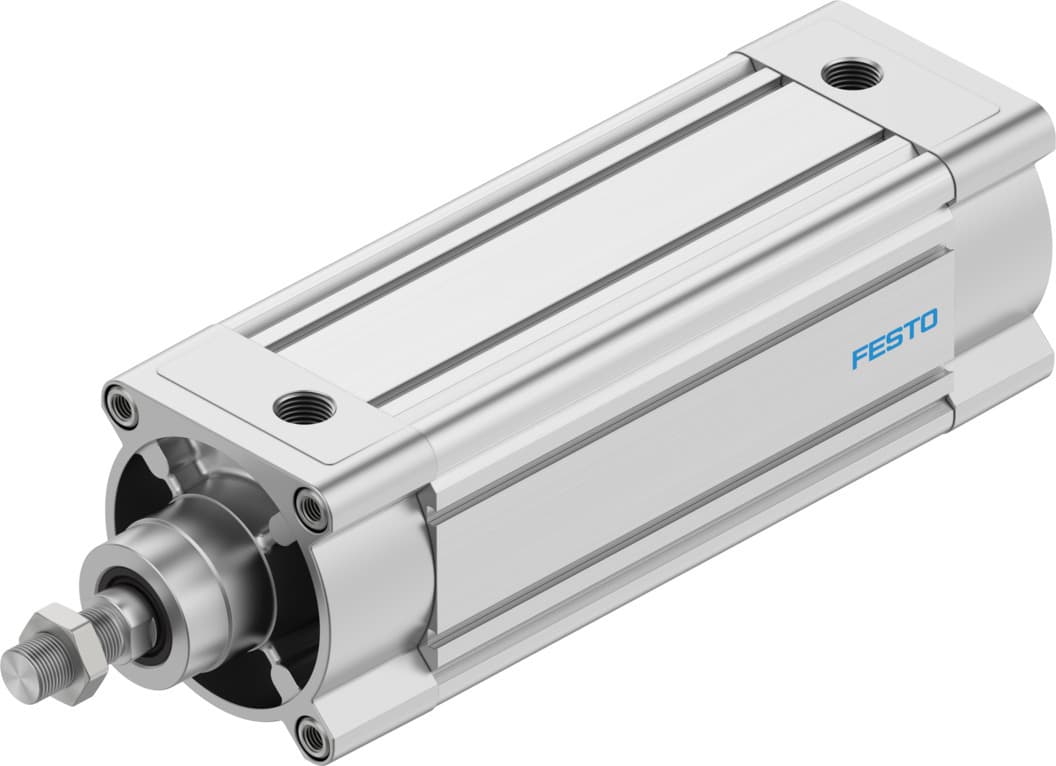

dsbc-100-200-d3-ppsa-n3
Selling Points
- 1The DSBC-100-200-D3-PPSA-N3 is built with a smooth-anodized wrought aluminum alloy cylinder barrel, ensuring durability and resistance to corrosion.
- 2This cylinder features self-adjusting pneumatic end-position cushioning, providing smooth operation and reducing wear on the piston rod.
- 3The DSBC-100-200-D3-PPSA-N3 offers optional mounting positions, allowing for flexible integration into various industrial automation systems.
- 4Conforming to ISO 15552 standards, this cylinder ensures compatibility with a wide range of pneumatic systems and components.
- 5With an operating pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar) and a theoretical force at 0.6 MPa (6 bar) of 4418 N on the return stroke, it delivers reliable performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 200mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3728g | Additional weight per 10?mm stroke | 152g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165688 |
Specifications may be subject to change without notice
