Product Model

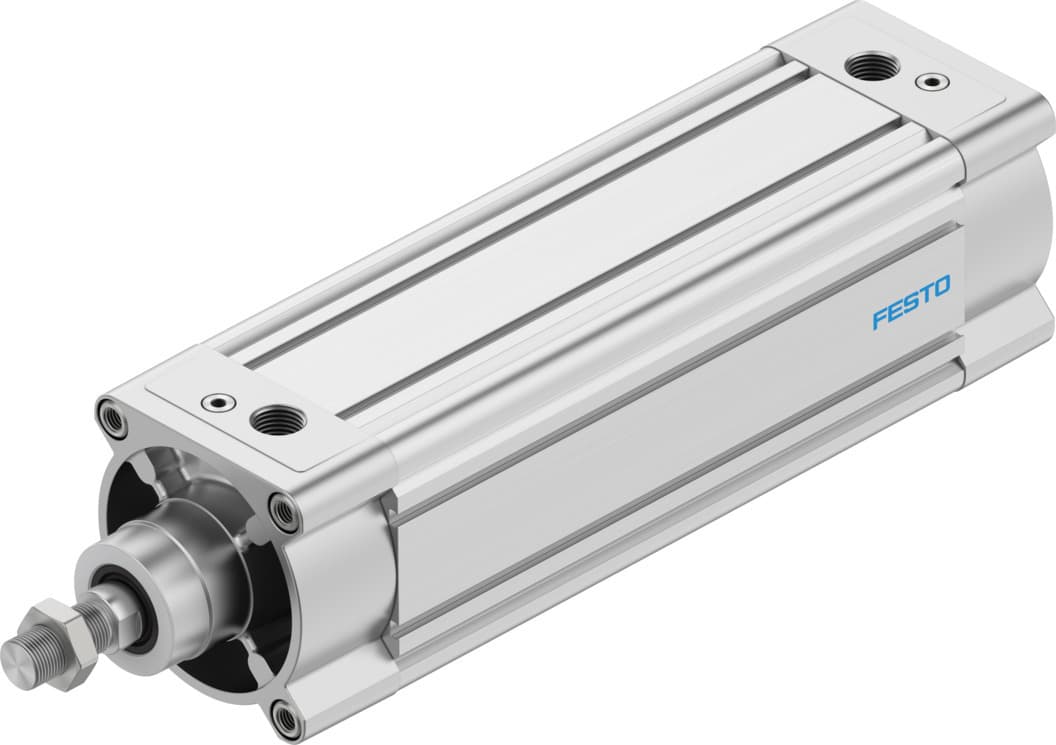

dsbc-100-250-d3-ppva-n3
Selling Points
- 1The DSBC-100-250-D3-PPVA-N3 cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements.
- 2This cylinder conforms to the ISO 15552 standard, ensuring compatibility and reliability in various industrial applications.
- 3Designed for double-acting operations, this cylinder can be used in a wide range of applications where precise and efficient movement is required.
- 4The cylinder operates within a pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar), making it versatile for different industrial conditions.
- 5Made from high-quality materials including wrought aluminum alloy for the piston, high-alloy steel for the piston rod, and TPE-U(PU) for seals, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3728g | Additional weight per 10?mm stroke | 152g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165654 |
Specifications may be subject to change without notice
