Product Model

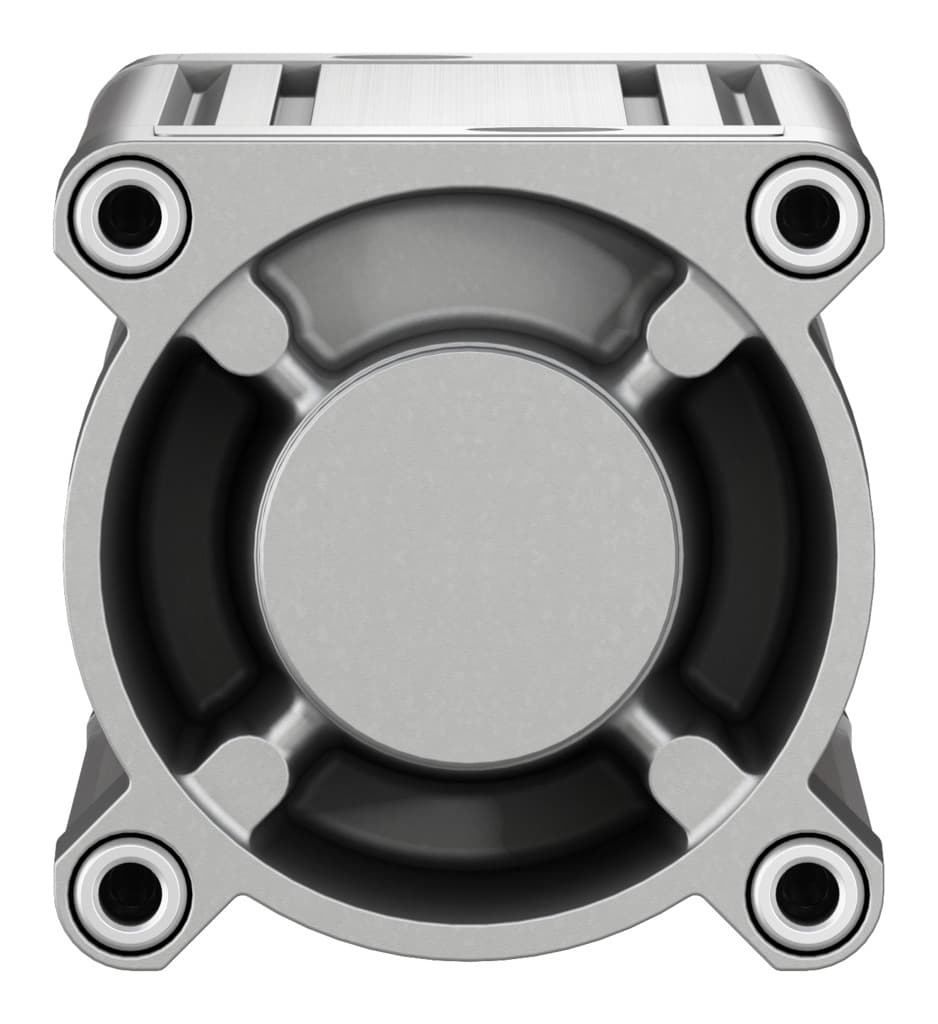

dsbc-100-250-ppsa-n3
Selling Points
- 1High-Performance Pneumatic Cylinder: The Festo DSBC-100-250-PPSA-N3 is designed for high-performance applications, ensuring reliable operation with a stroke of 250 mm and a piston diameter of 100 mm.
- 2ISO 15552 Compliance: This cylinder conforms to the ISO 15552 standard, ensuring compatibility and reliability in various automation systems.
- 3Self-Adjusting End-Position Cushioning: Equipped with self-adjusting pneumatic end-position cushioning, this cylinder provides smooth operation and reduces wear and tear.
- 4Robust Construction: Made from high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder offers robust construction and durability.
- 5Versatile Mounting Options: The DSBC-100-250-PPSA-N3 can be mounted in any position, offering flexibility in installation and integration into various automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3665g | Additional weight per 10?mm stroke | 101g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1384898 |
Specifications may be subject to change without notice
