Product Model

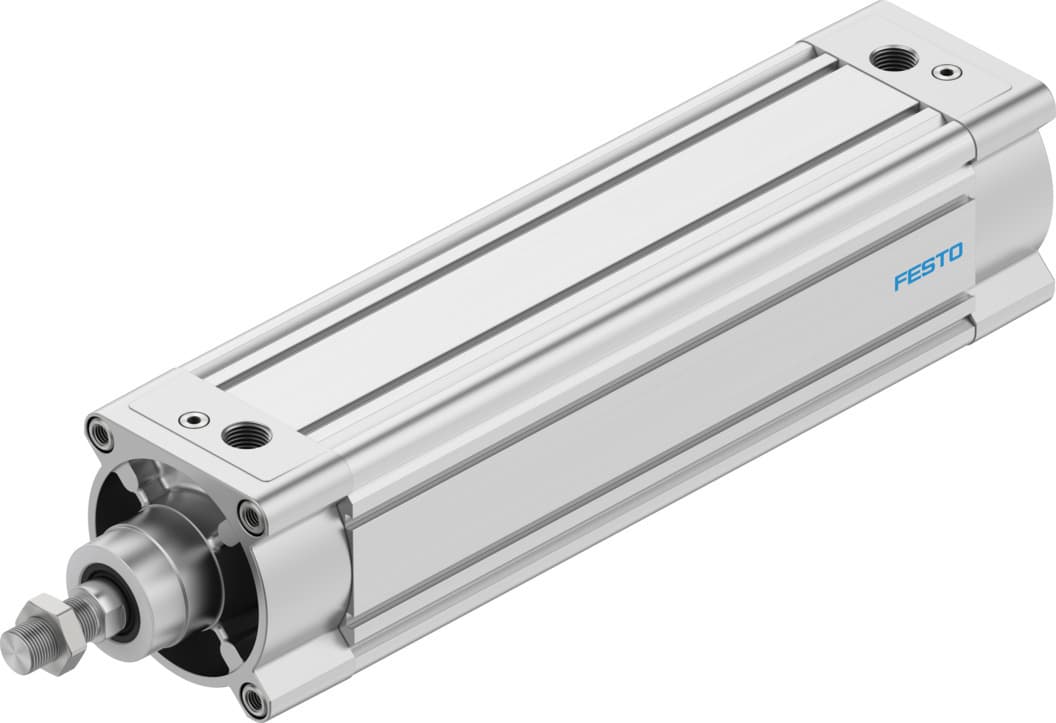

dsbc-100-320-d3-ppva-n3
Selling Points
- 1The Festo DSBC-100-320-D3-PPVA-N3 is a double-acting cylinder that conforms to ISO 15552 standards, ensuring compatibility and reliability in various industrial applications.
- 2This cylinder features a 100mm piston diameter and a 320mm stroke, providing ample movement for precise control and positioning in automation systems.
- 3Equipped with adjustable pneumatic cushioning at both ends, the DSBC-100-320-D3-PPVA-N3 offers enhanced damping and stability, reducing wear and tear on the cylinder.
- 4The cylinder is constructed from high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, ensuring durability and resistance to corrosion.
- 5Designed for use with compressed air to ISO 8573-1:2010 [7:4:4], this cylinder supports oiled operation, making it suitable for applications requiring lubrication for smooth performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3728g | Additional weight per 10?mm stroke | 152g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165655 |
Specifications may be subject to change without notice
