Product Model

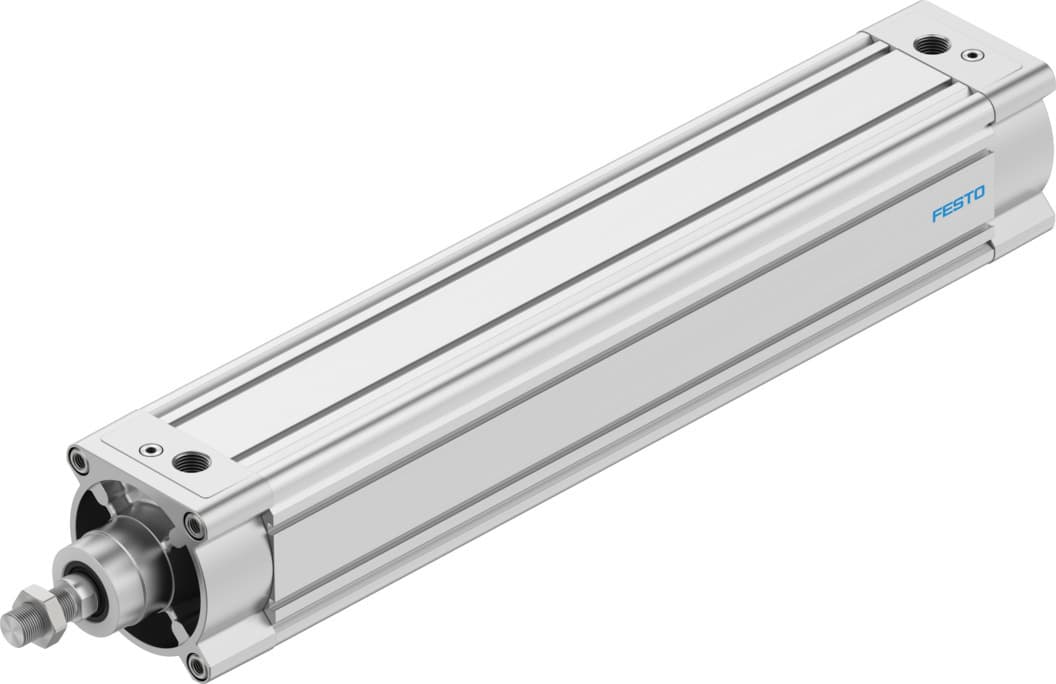

dsbc-100-500-d3-ppva-n3
Selling Points
- 1The Festo DSBC-100-500-D3-PPVA-N3 features a stroke length of 500 mm, making it suitable for a wide range of industrial applications.
- 2This pneumatic cylinder boasts a piston diameter of 100 mm and a piston rod thread of M20x1.5, ensuring robust and reliable operation.
- 3The cylinder is equipped with adjustable pneumatic cushioning at both ends, which helps reduce noise and vibration, enhancing overall performance and longevity.
- 4Conforming to the ISO 15552 standard, this cylinder offers excellent flexibility in mounting positions, allowing for easy integration into various systems.
- 5With a moving mass of 2950 g and an additional moving mass per 10 mm stroke of 39 g, this cylinder provides precise control and smooth operation even under heavy loads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 500mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3728g | Additional weight per 10?mm stroke | 152g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165659 |
Specifications may be subject to change without notice
