Product Model

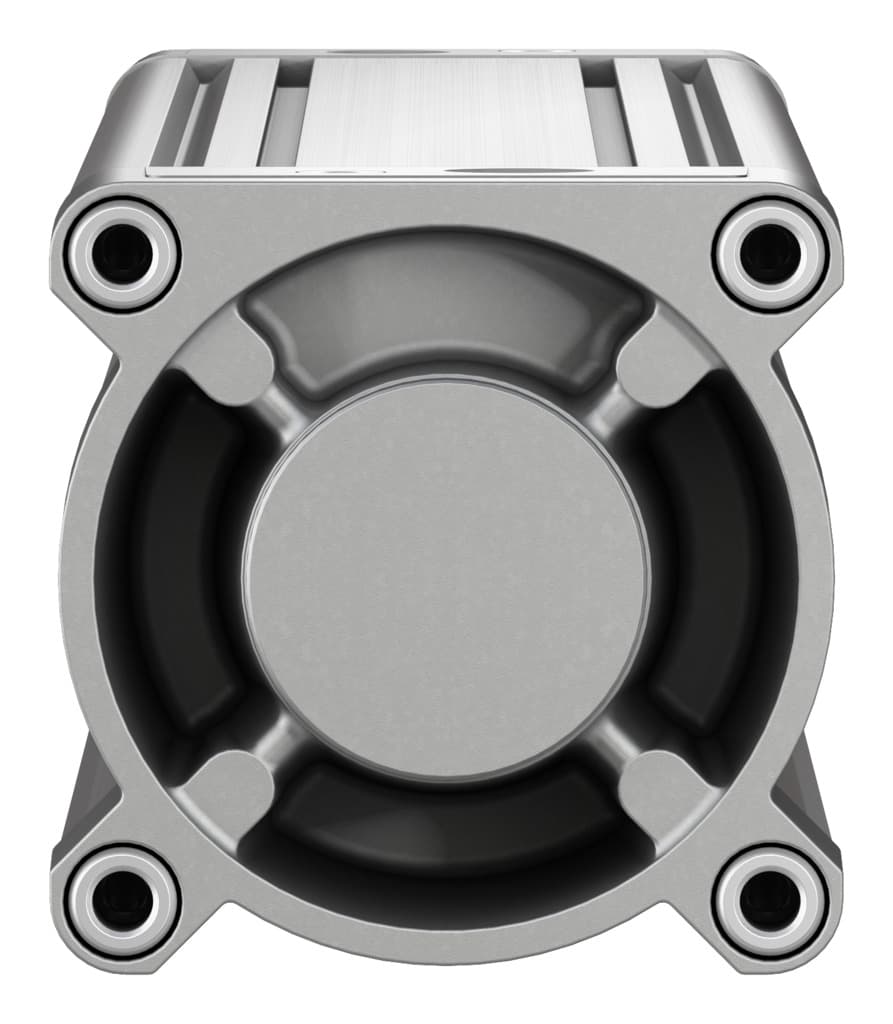

dsbc-100-500-ppva-n3
Selling Points
- 1High-Performance ISO Cylinder: The Festo DSBC-100-500-PPVA-N3 is a high-performance ISO cylinder designed to handle medium to heavy loads and high-speed applications with ease.
- 2Adjustable Pneumatic Cushioning: This cylinder features adjustable pneumatic cushioning at both ends, which helps reduce noise and vibration, ensuring smooth operation.
- 3Double-Acting Operation: With double-acting operation, the cylinder can move in both directions, providing flexibility and efficiency in various industrial applications.
- 4Robust Design and Materials: Constructed with high-alloy steel piston rods and smooth-anodized wrought aluminum alloy barrels, this cylinder offers excellent running performance and long service life.
- 5Compliance with ISO Standards: The Festo DSBC-100-500-PPVA-N3 conforms to the ISO 15552 standard, ensuring interchangeability and compatibility with other hydraulic and pneumatic cylinders.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 500mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3665g | Additional weight per 10?mm stroke | 101g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1384815 |
Specifications may be subject to change without notice
