Product Model

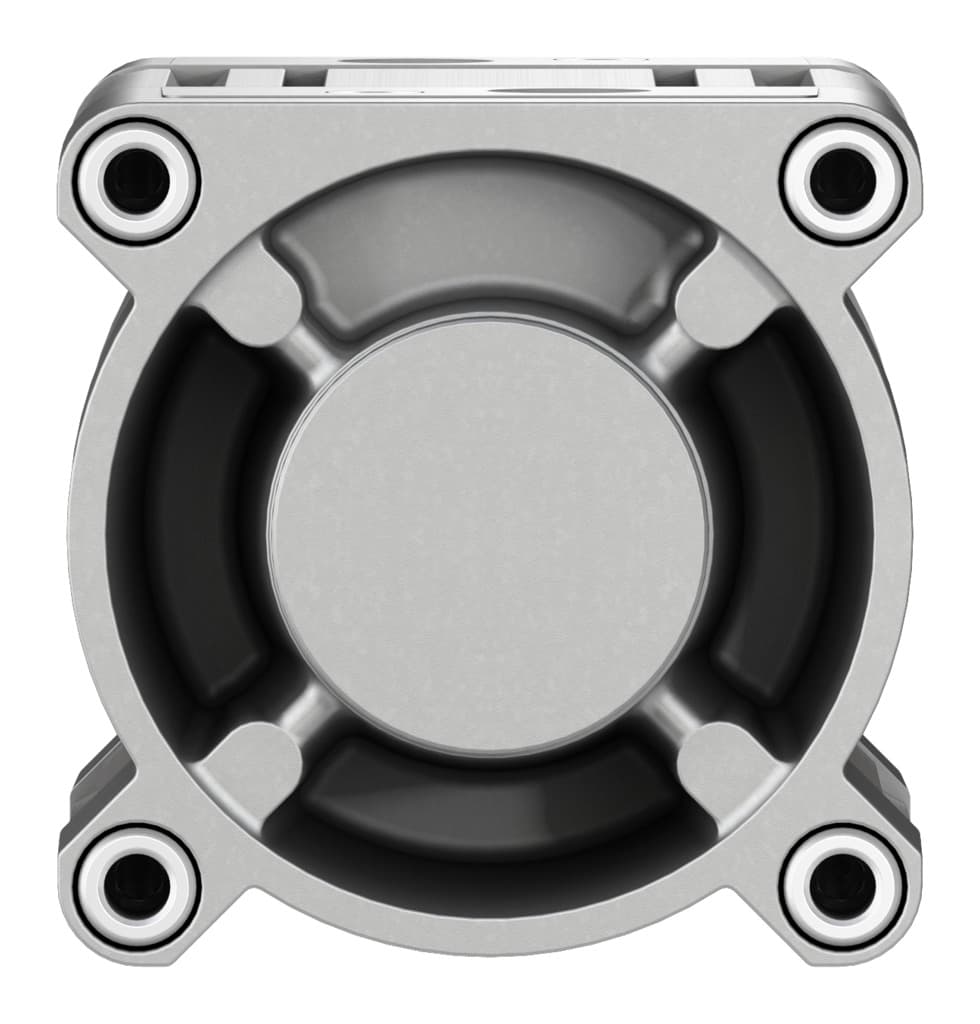

dsbc-100-50-ppva-n3
Selling Points
- 1The DSBC-100-50-PPVA-N3 features adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various operating conditions.
- 2This cylinder conforms to the ISO 15552 standard, providing compatibility with a wide range of industrial systems and easy integration into existing setups.
- 3With an operating pressure range of 0.4 to 12 bar (0.04 to 1.2 MPa), the DSBC-100-50-PPVA-N3 is suitable for demanding applications requiring high force and precision.
- 4Classified as CRC 2, this cylinder offers moderate corrosion resistance, making it suitable for use in environments with moderate stress from corrosion.
- 5The cylinder can be mounted in any position and is available with an external thread or internal thread, providing flexibility in installation and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3665g | Additional weight per 10?mm stroke | 101g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1384806 |
Specifications may be subject to change without notice
