Product Model

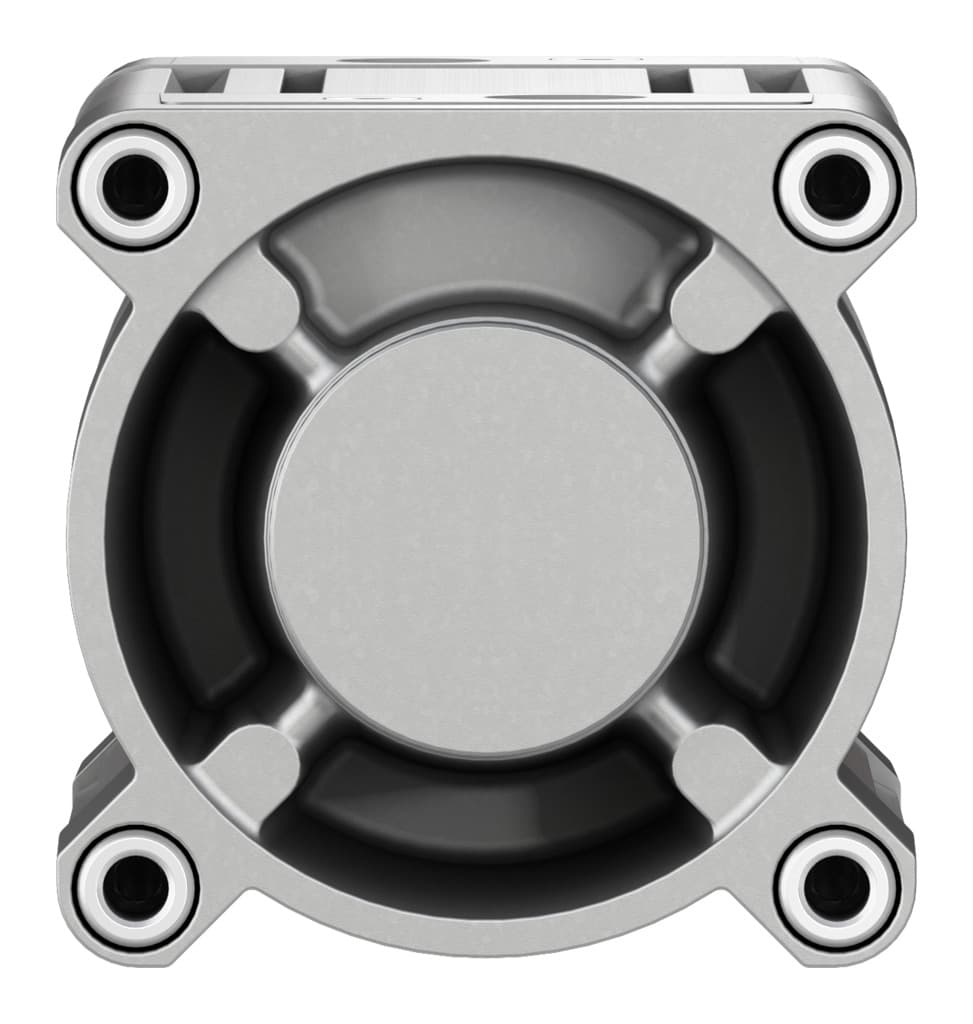

dsbc-100-80-ppva-n3
Selling Points
- 1The Festo DSBC-100-80-PPVA-N3 pneumatic cylinder offers exceptional performance with a stroke of 80 mm and a piston diameter of 100 mm, making it ideal for various industrial automation applications.
- 2This cylinder features adjustable pneumatic cushioning at both ends, ensuring smooth operation and reducing wear and tear on the system.
- 3The DSBC-100-80-PPVA-N3 conforms to the ISO 15552 standard, ensuring compatibility with a wide range of industrial systems.
- 4The cylinder can be mounted via female thread or with accessories, providing flexibility in installation and integration.
- 5Made from high-quality materials such as die-cast aluminum, wrought aluminum alloy, and high-alloy steel, the DSBC-100-80-PPVA-N3 is built to withstand moderate corrosion stress and operate in a wide temperature range (-20 °C to 80 °C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 100 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 3665g | Additional weight per 10?mm stroke | 101g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1384807 |
Specifications may be subject to change without notice
