Product Model

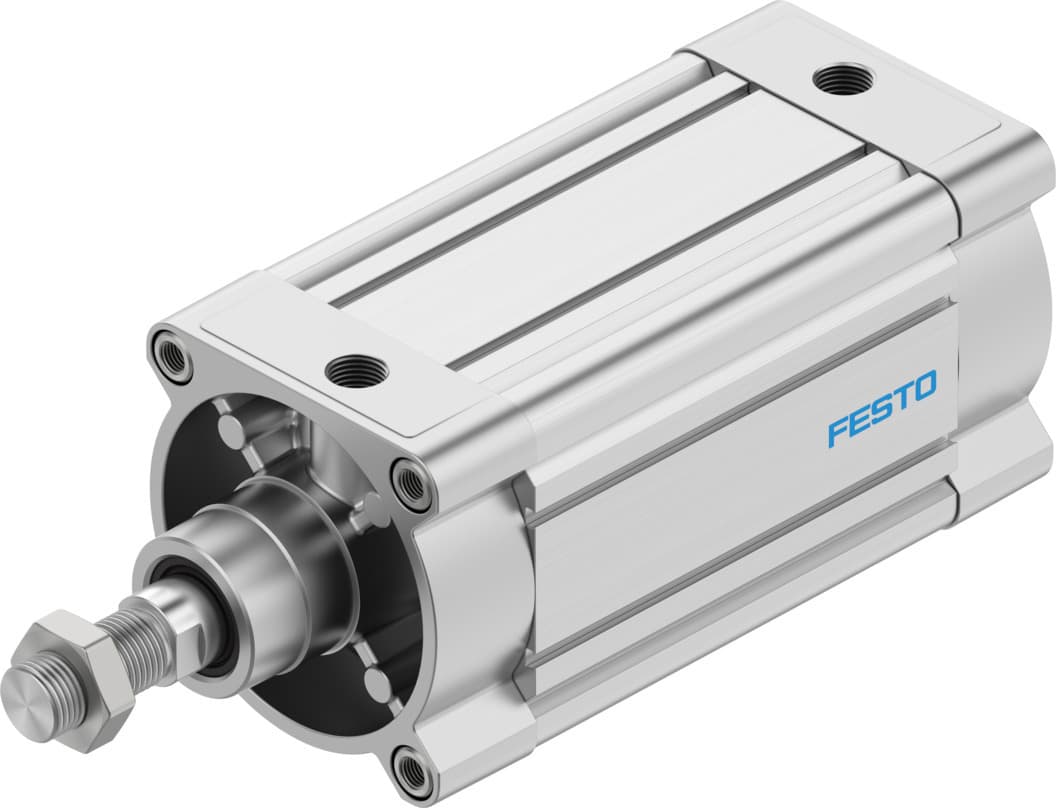

dsbc-125-125-d3-ppsa-n3
Selling Points
- 1The Festo DSBC-125-125-PPSA-N3 is a standards-based pneumatic cylinder designed to ISO 15552, ensuring compatibility and reliability in industrial automation systems.
- 2This cylinder features adjustable cushioning at both ends, providing precise control over the piston's movement and reducing wear and tear on the system.
- 3Equipped with sensor slots on three sides (feature D3), the DSBC-125-125-PPSA-N3 allows for precise position sensing, enhancing control and accuracy in various applications.
- 4The cylinder has a piston diameter of 125 mm and a stroke length of 125 mm, making it suitable for a wide range of industrial tasks that require precise movement control.
- 5With its robust design and high-quality materials, the Festo DSBC-125-125-PPSA-N3 offers reliable performance and long-lasting operation in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6768g | Additional weight per 10?mm stroke | 247g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165663 |
