Product Model

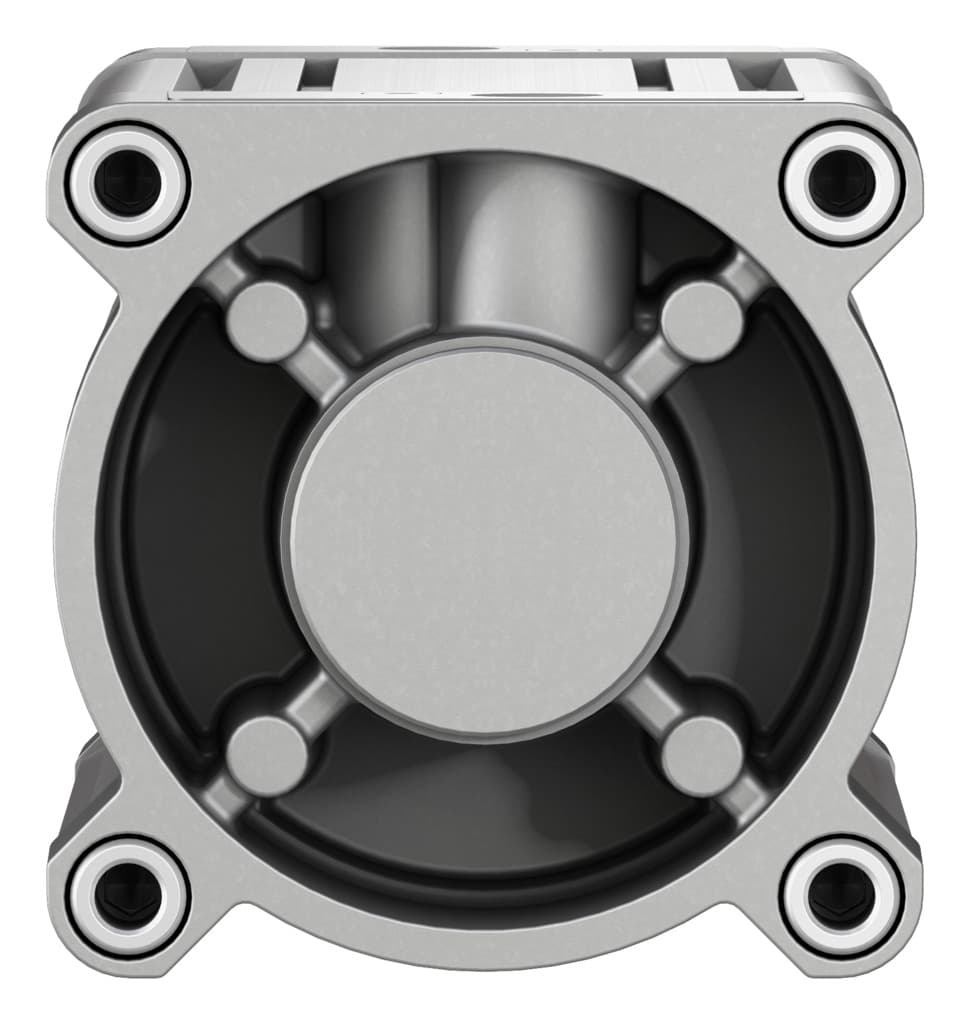

dsbc-125-160-ppva-n3
Selling Points
- 1The DSBC-125-160-PPVA-N3 offers pneumatic cushioning that can be adjusted at both ends, ensuring optimal performance and longevity in various operating conditions.
- 2This cylinder conforms to the ISO 15552 standard, ensuring compatibility and reliability in a wide range of industrial applications.
- 3Made from high-quality materials such as wrought aluminium alloy for the piston and high-alloy steel for the piston rod, this cylinder is designed for durability and resistance to corrosion.
- 4The DSBC-125-160-PPVA-N3 operates within a pressure range of 0.2 to 10 bar, making it suitable for various industrial processes requiring different levels of force.
- 5Equipped with proximity switch compatibility, this cylinder allows for precise position detection, enhancing control and accuracy in automated systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6611g | Additional weight per 10?mm stroke | 151g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1804962 |
Specifications may be subject to change without notice
