Product Model

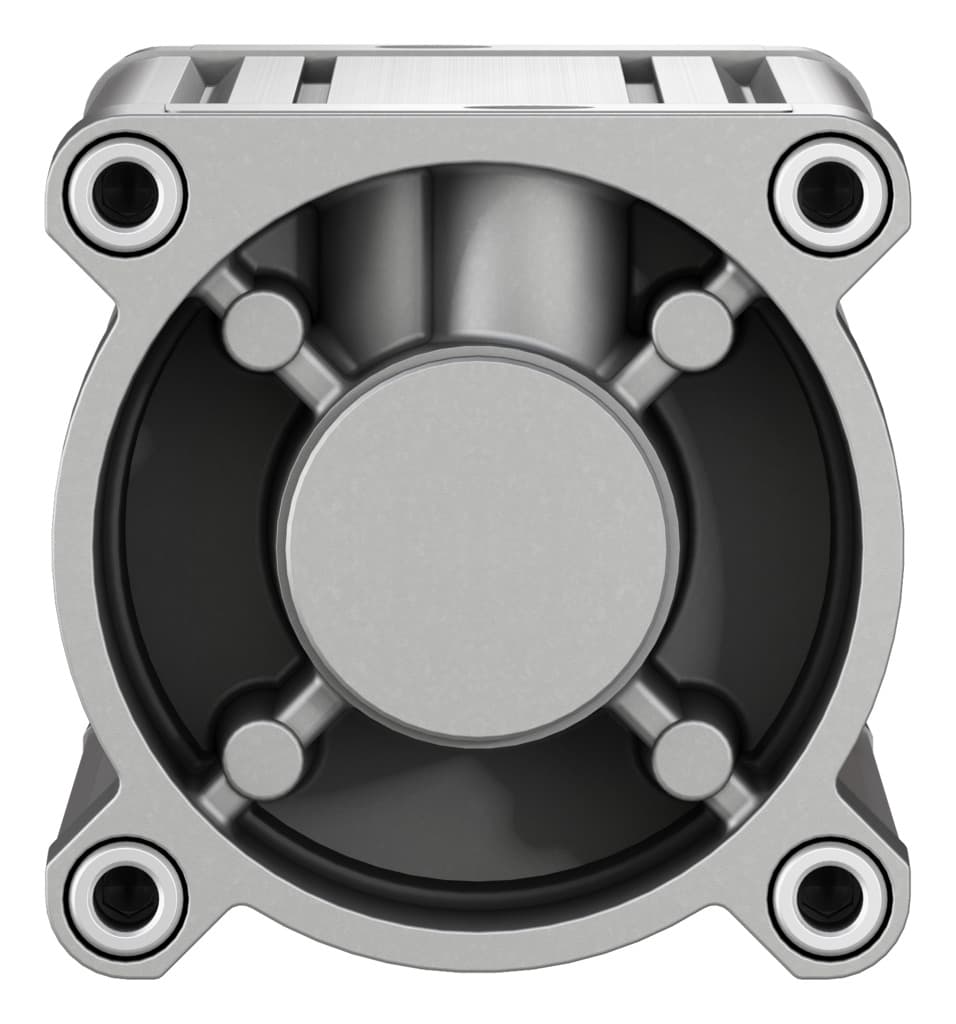

dsbc-125-250-ppsa-n3
Selling Points
- 1The DSBC-125-250-PPSA-N3 is a standards-based cylinder designed to meet ISO 15552 specifications, ensuring compatibility and reliability in various industrial applications.
- 2This cylinder features a piston diameter of 125 mm and a stroke length of 250 mm, making it suitable for a wide range of motion control needs.
- 3Equipped with self-adjusting pneumatic end-position cushioning (PPS), the DSBC-125-250-PPSA-N3 provides smooth operation and reduces wear and tear on the cylinder.
- 4The cylinder operates on compressed air, with an operating pressure range of 0.2 to 10 bar, and supports double-acting mode for efficient movement in both directions.
- 5Designed for versatility, the DSBC-125-250-PPSA-N3 can be mounted in any position and is compatible with proximity sensors for precise position detection, enhancing its utility in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6611g | Additional weight per 10?mm stroke | 151g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1804669 |
Specifications may be subject to change without notice
