Product Model
dsbc-125-320-ppsa-n3
Selling Points

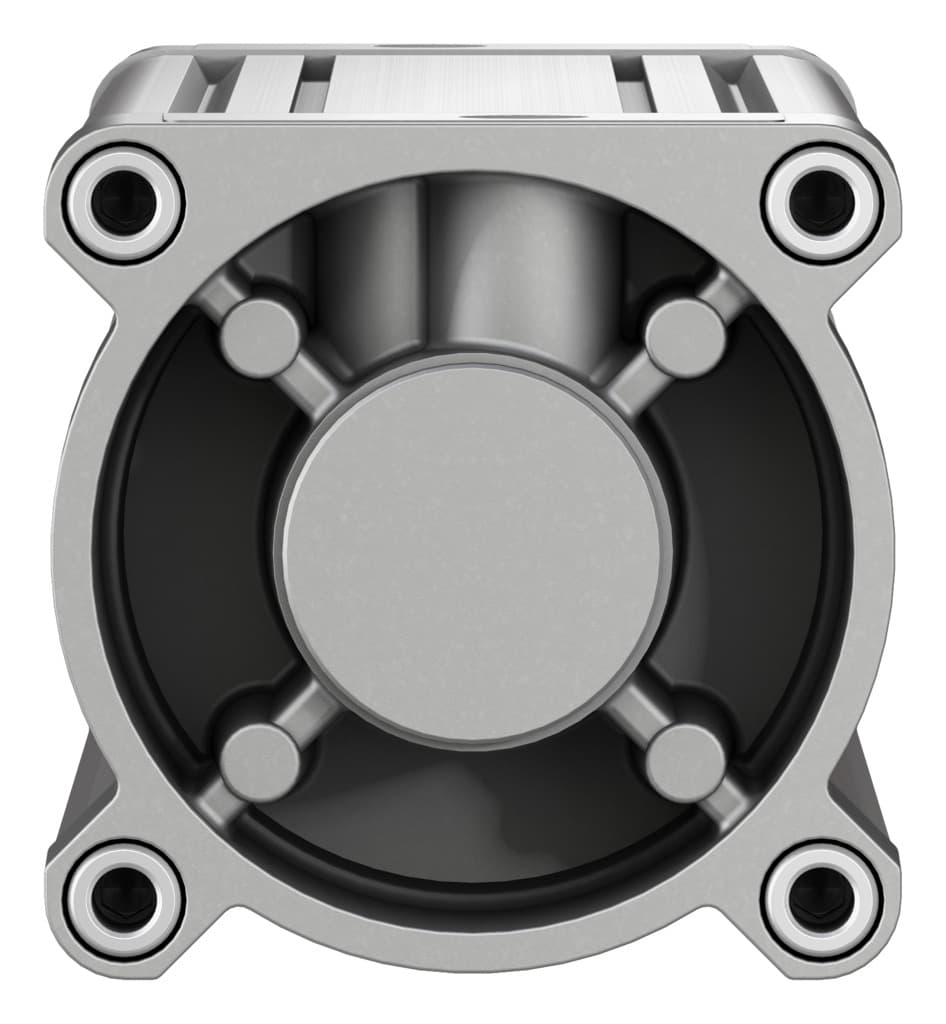

- 1The Festo DSBC-125-320-PPSA-N3 is a standards-based cylinder designed to meet ISO 15552 specifications, ensuring compatibility and reliability in industrial automation systems.
- 2This cylinder features a double-acting mode of operation, allowing for precise control and efficient movement in various applications, including manufacturing and assembly processes.
- 3With a piston diameter of 125 mm and a stroke length of 320 mm, the DSBC-125-320-PPSA-N3 offers a robust and versatile design suitable for a wide range of industrial tasks.
- 4The cylinder is equipped with self-adjusting pneumatic end-position cushioning (PPS), providing smooth operation and reducing wear on the components.
- 5The DSBC-125-320-PPSA-N3 supports position sensing via proximity switch, enabling real-time monitoring and control of the cylinder's position, enhancing overall system accuracy and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6611g | Additional weight per 10?mm stroke | 151g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1804671 |
Specifications may be subject to change without notice
