Product Model

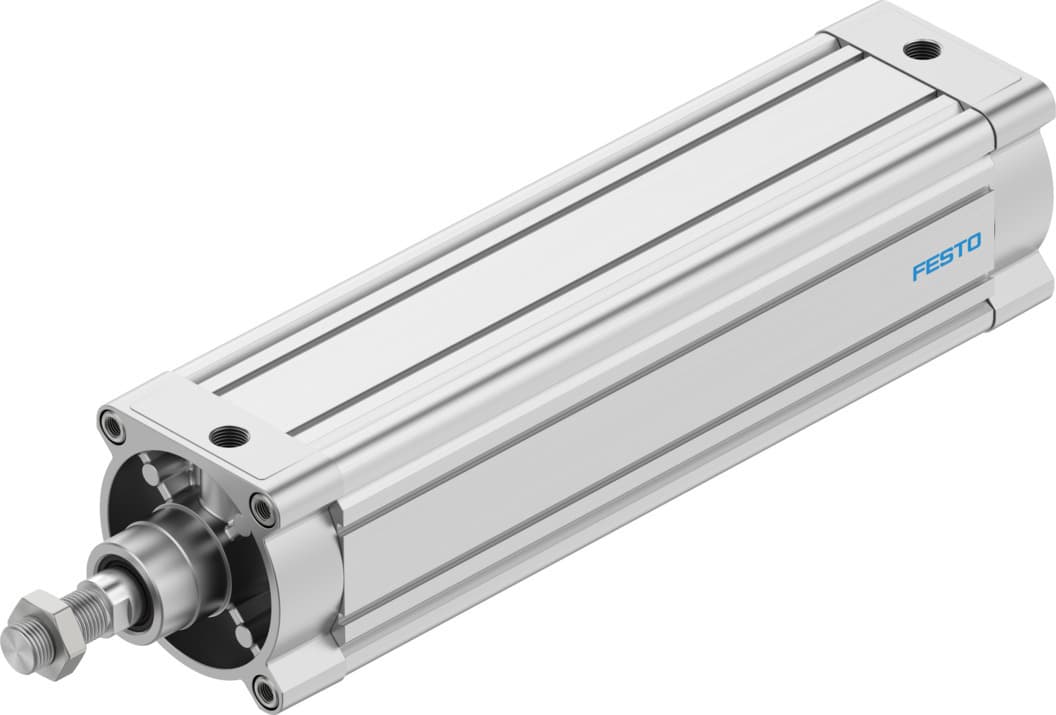

dsbc-125-400-d3-ppsa-n3
Selling Points
- 1The Festo DSBC-125-400-D3-PPSA-N3 features a stroke of 400 mm and a piston diameter of 125 mm, making it suitable for various industrial applications.
- 2This cylinder operates within a pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar), ensuring reliable performance under different conditions.
- 3Equipped with self-adjusting pneumatic end-position cushioning and optional mounting positions, this cylinder provides smooth operation and flexibility in installation.
- 4Constructed from high-alloy steel for the piston rod and wrought aluminum alloy for the piston, it offers moderate corrosion resistance (CRC 2) and conforms to standards like ISO 15552 and VDMA24364-B1/B2-L.
- 5The cylinder supports position detection via proximity switch and is available with the piston rod at one end, enhancing its versatility in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 400mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6768g | Additional weight per 10?mm stroke | 247g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165677 |
Specifications may be subject to change without notice
