Product Model

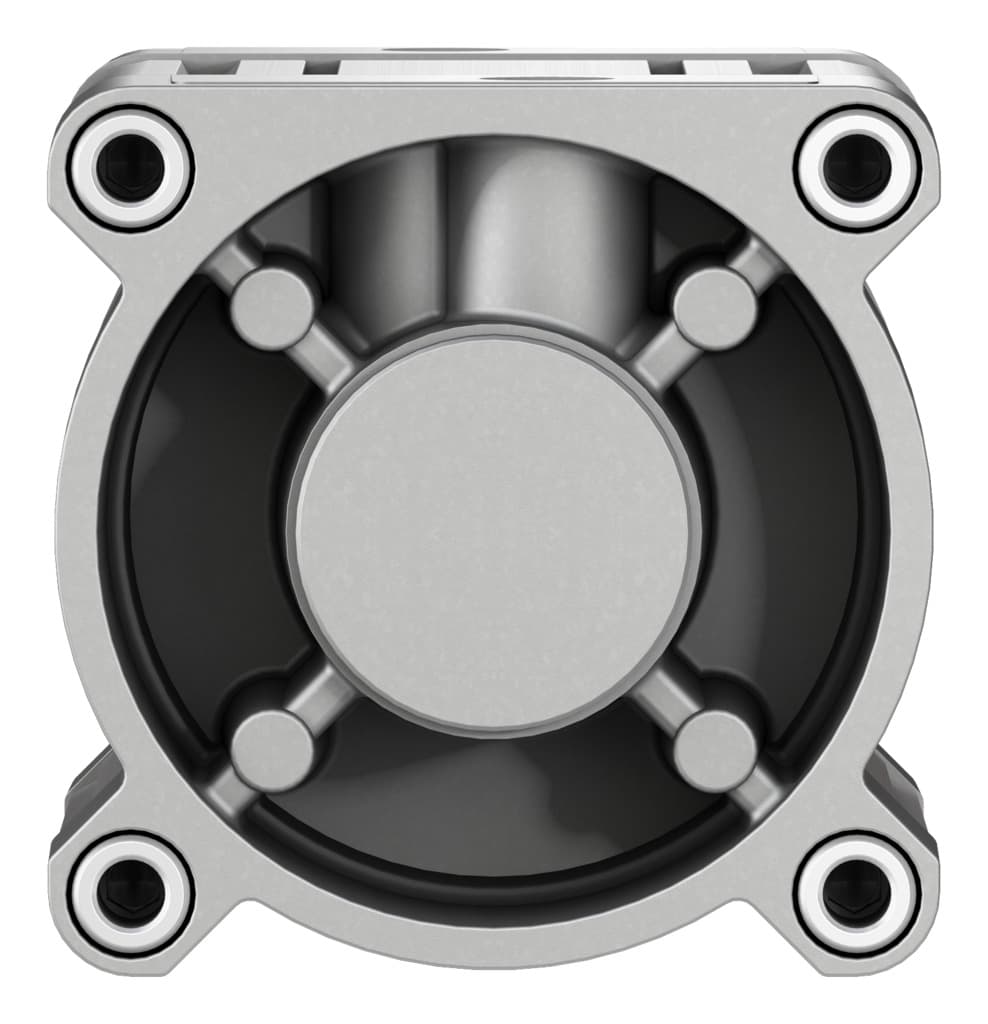

dsbc-125-50-ppsa-n3
Selling Points
- 1The DSBC-125-50-PPSA-N3 cylinder features a self-adjusting pneumatic end-position cushioning system, ensuring smooth and controlled movements in various applications.
- 2This cylinder conforms to the ISO 15552 standard, ensuring compatibility and reliability in industrial automation systems.
- 3Designed for double-acting operations, the DSBC-125-50-PPSA-N3 cylinder can handle both forward and reverse strokes efficiently, making it versatile for various applications.
- 4The cylinder operates within a pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar), providing flexibility in different industrial settings.
- 5With a corrosion resistance class of CRC 2 and an ambient temperature range of -20 °C to 80 °C, this cylinder is suitable for a variety of environments and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 50mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6611g | Additional weight per 10?mm stroke | 151g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1804663 |
Specifications may be subject to change without notice
