Product Model

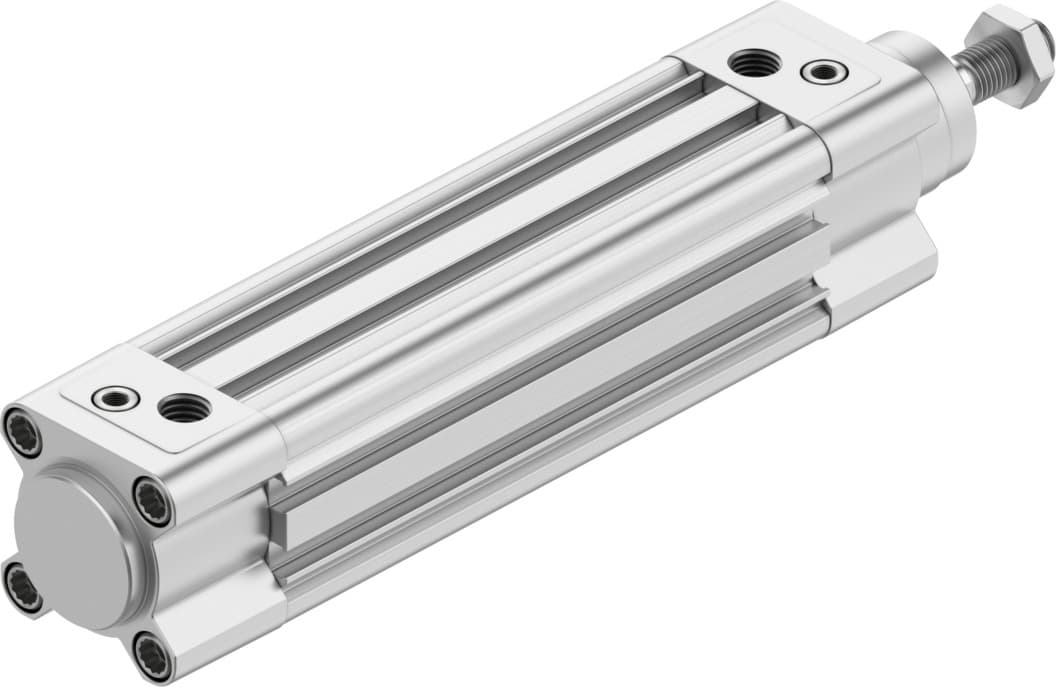

dsbc-32-100-d3-ppva-n3
Selling Points
- 1The DSBC-32-100-D3-PPVA-N3 is a double-acting pneumatic cylinder designed to meet ISO 15552 standards, ensuring high precision and reliability in various industrial applications.
- 2This cylinder features a piston diameter of 32 mm and a stroke length of 100 mm, making it versatile for a wide range of mechanical operations.
- 3The DSBC-32-100-D3-PPVA-N3 includes adjustable pneumatic cushioning at both ends, enhancing its performance and durability in demanding environments.
- 4Equipped with a male thread piston rod and a metal wiper seal, this cylinder is ideal for applications requiring high resistance to particles and wear, such as welding systems.
- 5The cylinder supports position detection via proximity switch, ensuring accurate control and monitoring of its position in real-time, enhancing overall system efficiency.
- 600 mm
- 7mm
- 8M10x1.25
- 9Adjustable pneumatic cushioning at both ends
- 10Optional, with standardized mounting interfaces
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.8bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.4J | Cushioning length | 17mm |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 110g | Additional moving mass per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 480g | Additional weight per 10?mm stroke | 31g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3656519 |
Specifications may be subject to change without notice
